Devices available from Cronus-PCS
|
Family |
Kids |
Description |
p/n |
EURO |
|
Ananke |
Pump control | Diaphragm Single-Use-Pump's (SUP) - Drive Unit's able to operate independent or via OPC |
||
|
U2 |

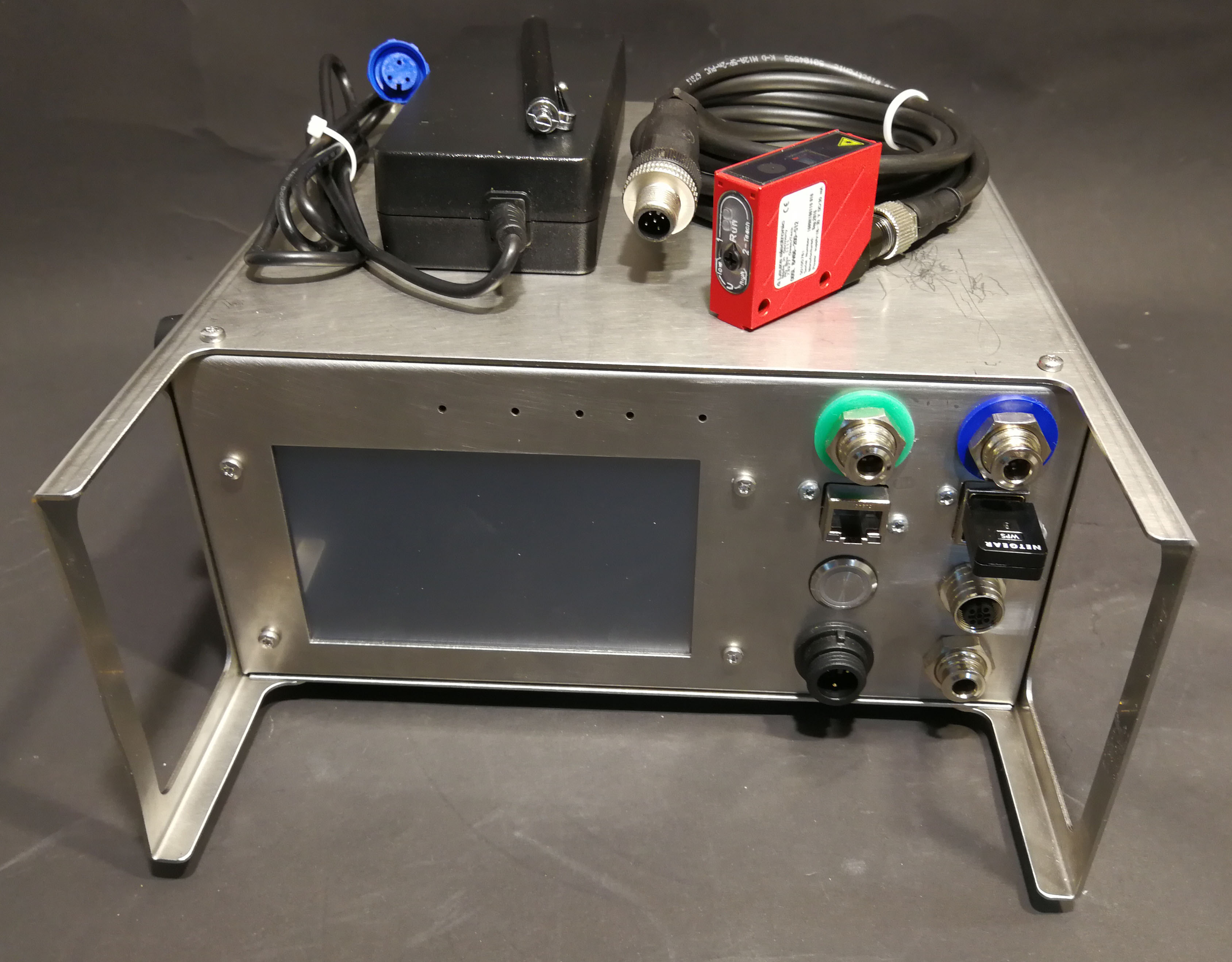

Clotho / Atropos-1 |
Single SUP control, 3 x vacuum and pressure sensors, 2 x proportional valves, 1 x Laser sensor, for one Clio/Euterpe size 30 or 100 or 300 SUP. Please find the product at PerfuseCell or PumpCell websites, incl one Zephyros 24 VDC supply. |
1210 |
16,500 |
|
U2 |

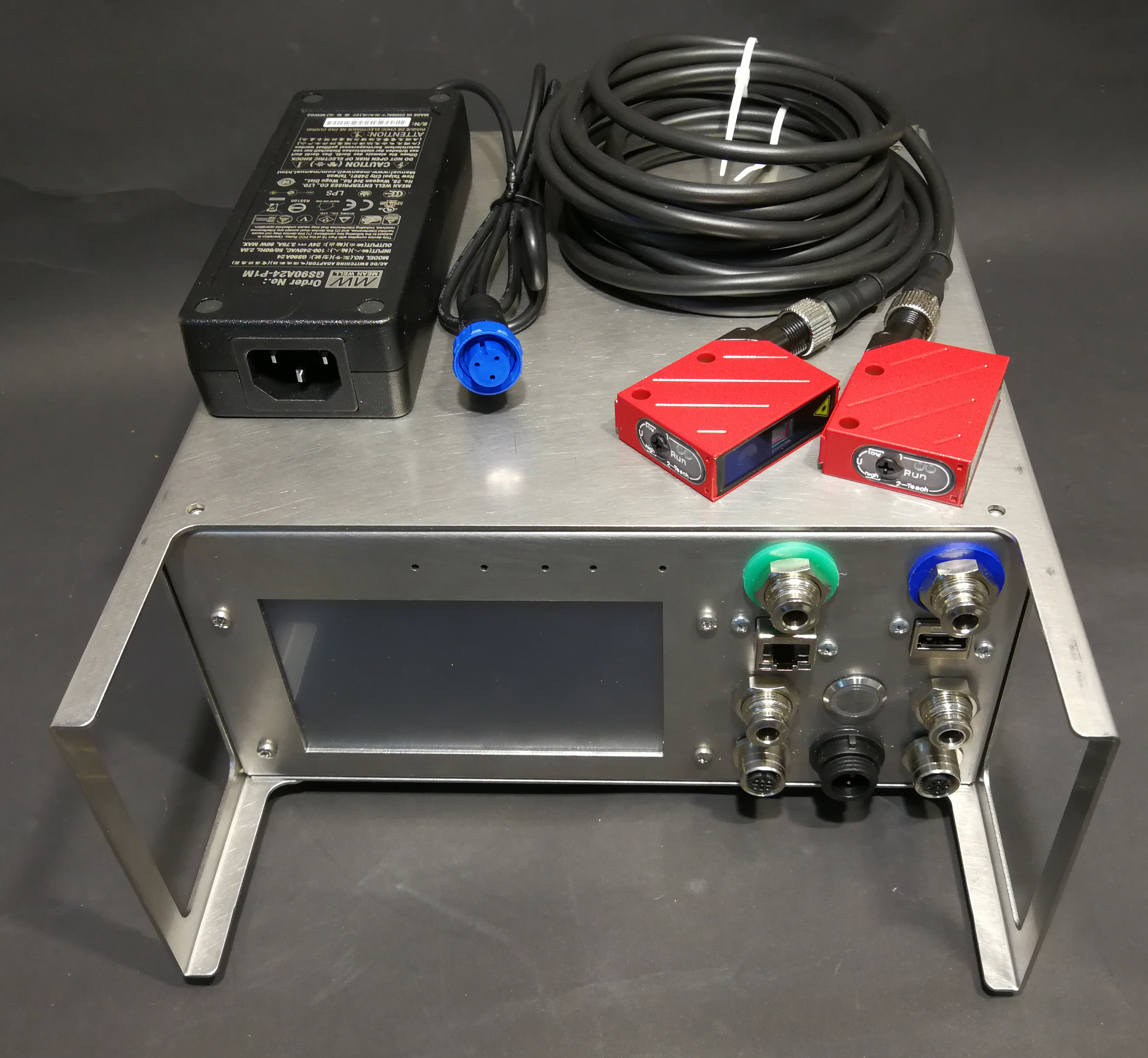

Clotho / Atropos-2 |
Dual SUP control, 4 x vacuum and pressure sensors, 4 x proportional valves, 2 x Laser sensor, for 2 either Clio/Euterpe size 30 or/and 100 SUP. Please find the product at PerfuseCell or PumpCell websites, incl one Zephyros 24 VDC supply. |
1220 |
22,000 |
| Cronus | Peripheral devices | Internal connection of Cronus-PCS unit's | ||
|
U1 |
Cassiopeia |
DHCP switch with a range of RJ45 port's, DNS, incl one Zephyros 24 VDC supply |
2200 |
3,500 |
|
U1 |
Andromeda |
Signal transmitter for a range of periphery external devices, like balancer's, sensor's |
2210 |
|
|
Eos |
Power Supplies |
Validated Power Supplies | ||
|
desktop |
Zephyros |
1 x 24 VDC Power Supply, 100 or 144 watt total, 110-230 VAC supply |
2530 |
500 |
|
Electra |
Thermal control |
Units for thermal control of blankets or jackets - unit able to operate independent or via OPC |
||
|
U2 |
Harmonia |
Dual channel electrical heating control operating on either 110 or 230 VAC supply |
3110 |
8,000 |
|
Europa |
Gas Control |
Pressure/vacuum pump's and inlet gas control |
||
|
U2 |
Carnus-MFC-4 |
Four / 4 channel Mass-Flow-Controller with build-in Apollon PLC for 24 VDC drive, select flow range on all 4 channels |
43010-xxxx |
10,000 |
|
U2 |
Carnus-MFC-8 |
Eight / 8 channel Mass-Flow-Controller with build-in Apollon PLC for 24 VDC drive, select flow range on all 4 channels |
43020-xxxx | 14,000 |
|
U2 |

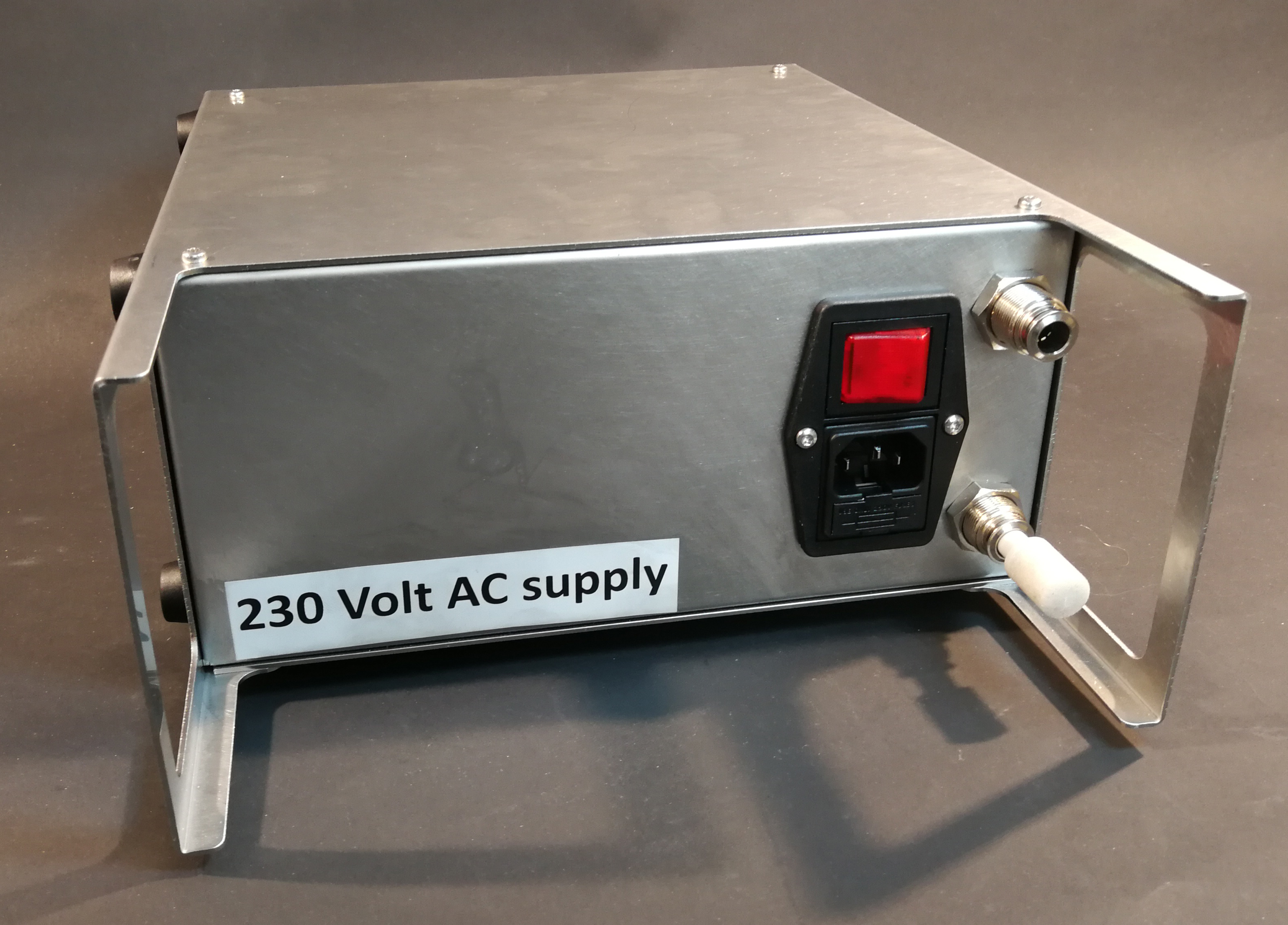

Alagonia-8 230 |
Air pump asynchronous motor, for 230 VAC drive. Please find the product at PerfuseCell or PumpCell websites. |
43230-8 | 4,500 |
|
U2 |

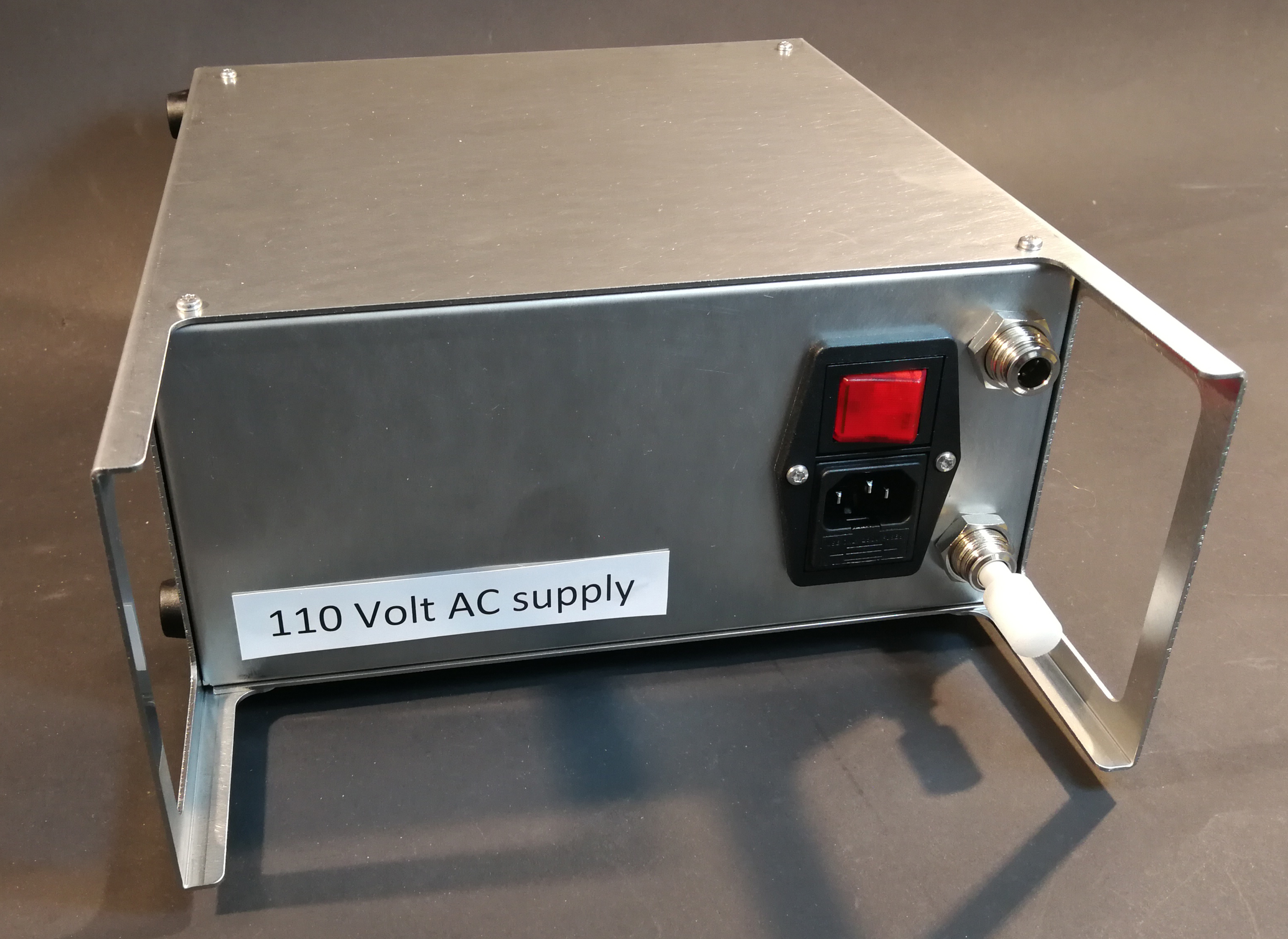

Alagonia-8 110 |
Air pump asynchronous motor, for 110 VAC drive. Please find the product at PerfuseCell or PumpCell websites. |
43110-8 |
4,500 |
|
U3 |
Alagonia-12 230 |
Vacuum pump driven by asynchronous motor for selected 110 or 230 VAC drive, no power cable included. Please find the product at PerfuseCell or PumpCell websites. |
43230-12 |
4,500 |
|
U2 |

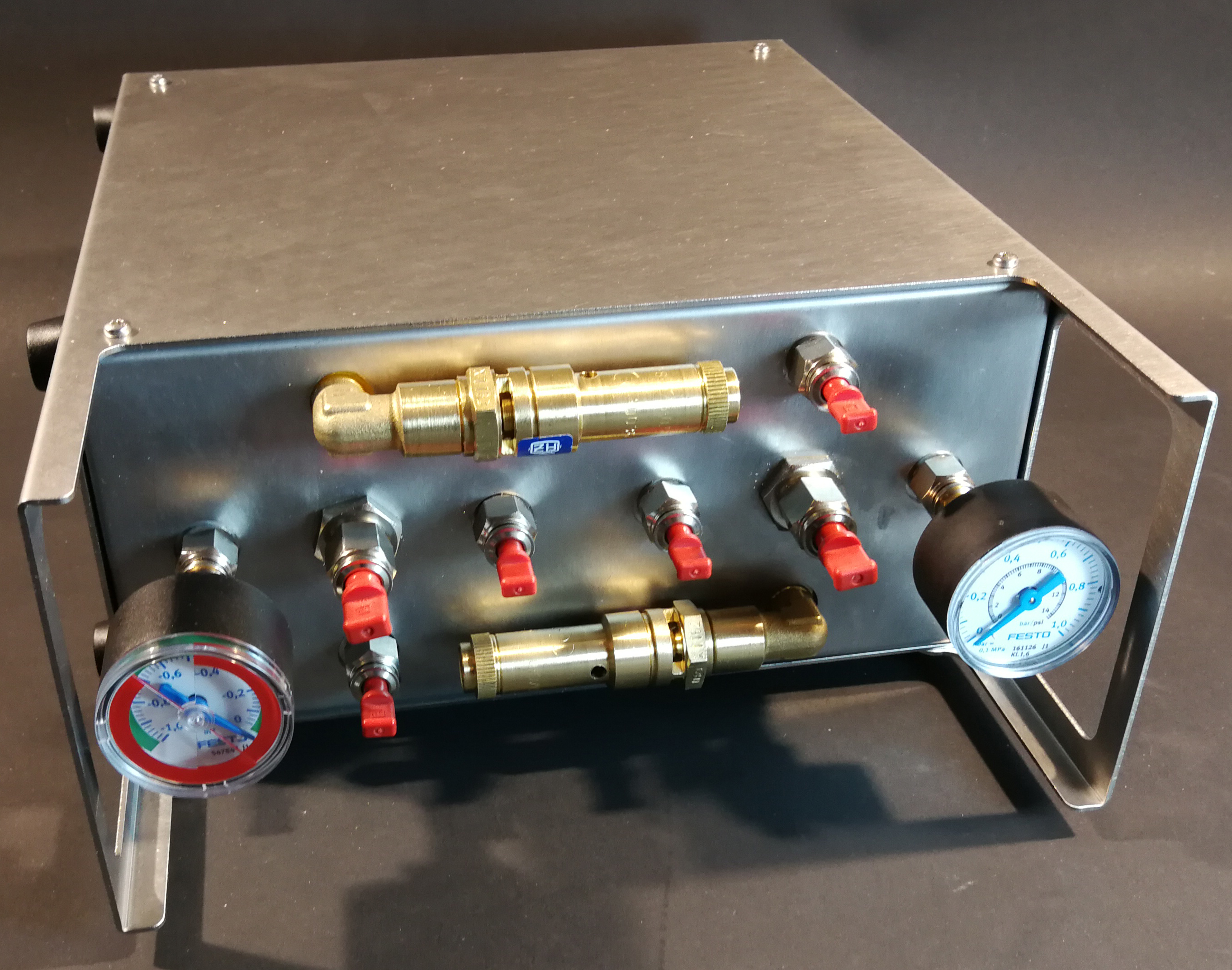

Sarpedon |
Pressure, vacuum storage, one litre each. Please find the product at PerfuseCell or PumpCell websites. |
4500 |
3,500 |
| Hera | Peristaltic pump | Drive Unit's able to operate independent or via OPC |
||
| U2 | Otrera | Drive Unit with two Boxer 15KS peristaltic pump heads coupled directly to NEMA 17 step motors, incl one Zephyros 144 watt PS module. | 5040 | 10,000 |
| Levitronix flow sensor for automated calibration, one unit. Available ultimo 2022 | 5045 | 6,000 | ||
| U3 | Ares | Drive Unit with two Boxer 25K peristaltic pump heads coupled directly to NEMA 23 step motors, incl one Zephyros 144 watt PS module. | 5050 | 10,000 |
| Niobe | Sensor amplifiers | |||
| U2 | Sipylus | Digital transmitter for selectable set of max 6 independent analogue pH and DO and temp (A) or conductivity (B), incl one Zephyros 100 watt PS module. | 7300-x | 8-12,000 |
| U2 | Ogygia | Gas sensor unit for 2 x O2 and 2 x CO2 | 7310 |
|
|
Themis |
Motor-Drive-System |
Motor-Drive-Systems - incl motor - able to operate independent or via OPC or 4-20 mAmp |
||
|
U3 |
Horae 23 |
Digital drive Unit incl Kollmorgen AKM-23 180 watt, ABB CP620 display, 230 VAC |
8123 |
15,000 |
| U2 | Perseus | Digital drive Unit including one brushless DC motor, stainless steel U2 cabinet, Zephyros PS module and ID39-B servo motor adapter. | 8410 | 12,000 |
|
U1 |
Cadmus |
Analogue drive Unit including two Biston / NEMA-23 step motors, stainless steel U1 cabinet, Zephyros PS module and ID39-B servo motor adapter. |
8420 |
7,000 |
|
U2 |
Cilix-2 |
Digital drive Unit including two NEMA-17 BLDC servo motors (or NEMA-13) with Hall sensors, encoder and ID30B servo motor adapter, stainless steel U2 cabinet, incl Zephyros PS module. |
8430 |
12.000 |
