Transmitter's for bioprocesses sensor's
Niobe family deals with transmitters, pre-amplifiers for various sensor connection relevant for the pharma industry. All pre-amplifiers / transmitters devices is CE certified and EMC compliant for dedicated external Single-Use-Sensor (SUS) or Re-Useable-Sensors (RUS). The external Power-Supply is UL listed.
|
Product, model name |
Sipylus |
Ogygia |
Andromeda |
|
pH - chemical |
ARC - SUS |
no |
no |
|
DO - optical |
ARC RUS |
O2 gas |
no |
|
Glucose |
2024 - ARC |
no |
no |
|
Conductivity - electrical |
ARC SUS |
no |
no |
|
biomass - capacitance |
SUS patch + ARC RUS |
no |
no |
|
CO2 - optical |
ARC RUS |
CO2 gas |
no |
|
Temperature |
Pt100, Pt1000, NTC22 |
no |
no |
|
PendoTech pressure |
no |
no |
yes |
|
Digital balancer |
no |
no |
yes |
|
Hephaestus cabinet size |
U2 |
U2 |
U1 |
|
Communication - LAN |
OPC-UA |
OPC-UA |
OPC-UA |

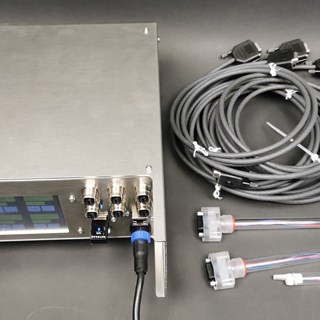

Sipylus status - in production since 2022 Q3
In production - Digital transmitter with 6 independent ARC input for in liquid measuring: pH, DO, bio-mass, conductivity, CO2, temp. Designed for being a part of the Cronus-PCS package. As Sipylus communicate also via OPC-UA then stand alone applications is straight forward. Designed for in liquid measurements. Analogue sensors may require the ARC module.

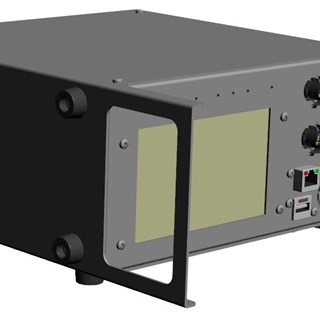

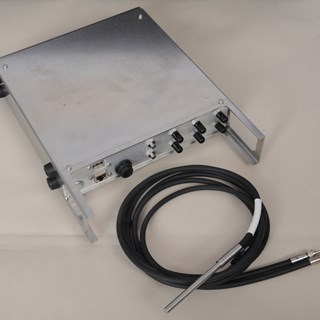

Ogygia status - in production 2024 Q3
Digital transmitter with 4 independent sensors for O2 and CO2 gases - two of each. Designed for being a part of the Cronus-PCS package. As Ogygia communicate also via OPC-UA then stand alone applications is straight forward. Designed for off-gas measurements from bioreactors and fermenters.
Andromeda status - in production 2024 Q2
Signal transmitter for connecting a range of periphery external devices. Such a balancers and analogue devices.
Info around Single-Use-Sensor's to be found on:
Check out availability status on www.cronus-pcs.com/commerce
