HERA family

The range, sizes, spec for Hera peristaltic pump's

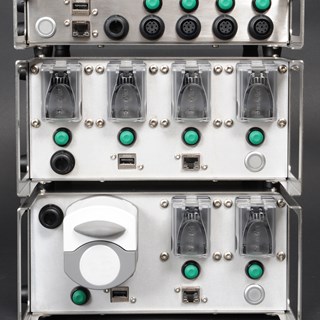

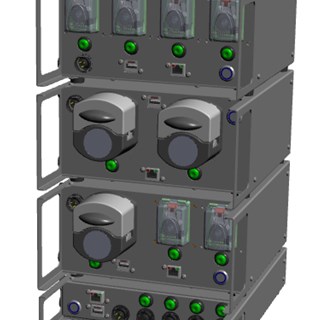

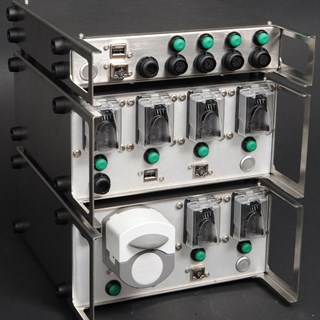

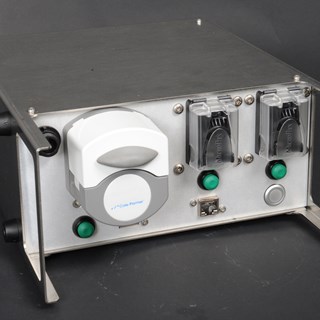

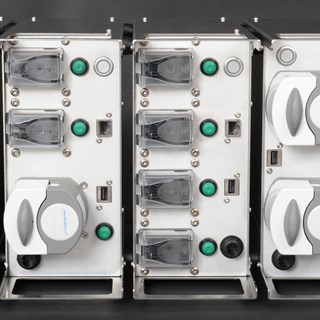

all Hera family of pumps.JPGthe mand and some compact gear.JPGEnyo peristaltic pump mixed.JPGHera family devices of pumps.JPGHera family stacked.jpgOtrera Side View

The Hera family of peristaltic pumps offer precise RPM control of the rotor as to the use of direct coupled stepmotor. This solution features the ultimate dynamic RPM range, both directions, power to drive any hose, internal CANbus communication platform. The Hera family of peristaltic pumps accommodate all imaginable requirements with compactness.



Product, model name

Angelos

Enyo

Hebe

Ares

Otrera

Number of pump heads

2

3

4

2

2

Pump capacity, min mL/min

<0.001

<0.001

<0.001

<0.001

<0.001

Pump capacity, mL/min

0-370

0-50 and 0-370

0-50

0-2100

0-625

Max hose diameter, OD mm

6.5

4.8 and 6.5

4.8

8.0 and 12.8

8.0

Number of rollers

3



4

3 or 4

4

Stainless Steel cabinet

Hephaestus U2

Hephaestus U2

Hephaestus U2

Hephaestus U3

Hephaestus U2

Peristaltic pump in production

Otrera status - available sinse 2021

2 individually operating peristaltic pump heads, arranged in Hephaestus U2 cabinet

Communication

Hera kids are designed for stand-alone operation or connection with Cronus PCS – www.cronus-pcs.com - or other equipment able to handle ModBus and OPC-UA. Look under Support for more info.
