Specification to the kid from Hera family of peristaltic pump
|
Product, model name |
Enyo |
|
Number of pump heads |
3 |
|
Min pump capacity, mL/min |
0.00001 |
|
Max pump capacity, mL/min/300 rpm |
2 x 50 + 1 x 370 |
|
Max hose diameter, mm |
4.8 and 6.5 |
|
Weigth, kilo |
4.1 |
Design

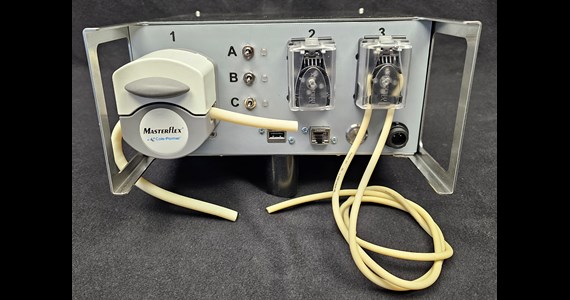

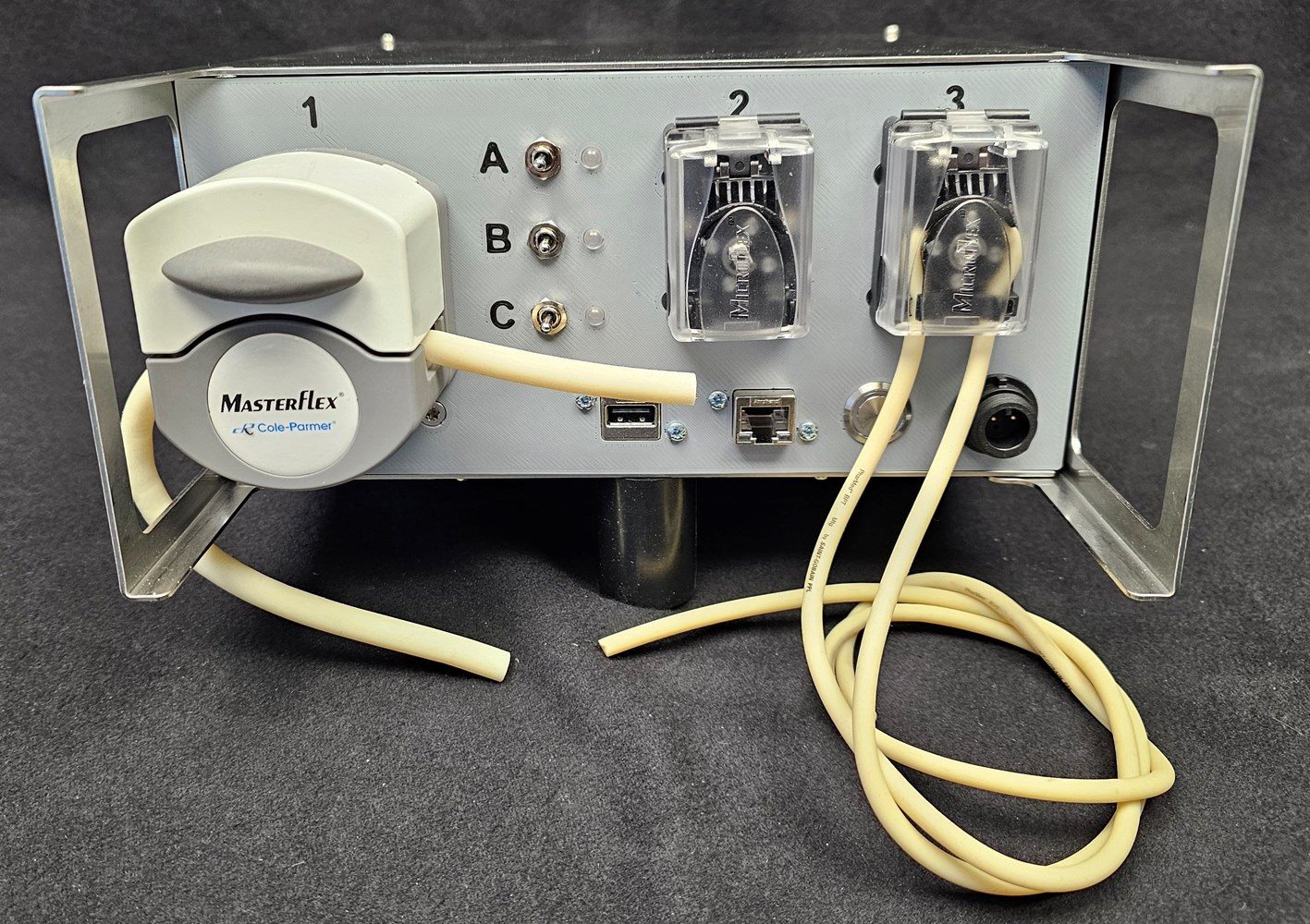

Two MicroFlex and one MiniFlex peristaltic pump heads coupled each directly to Nema stepper motors for un-parallel low liquid flow and accurate performance. Recommend continuously max 300 RPM and intermediate 400 RPM. Build-in RPM controlled cooling fan. IP31 protection designed.

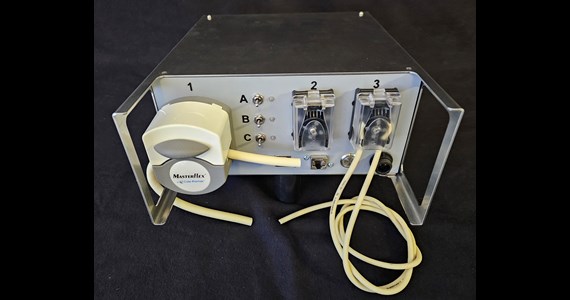

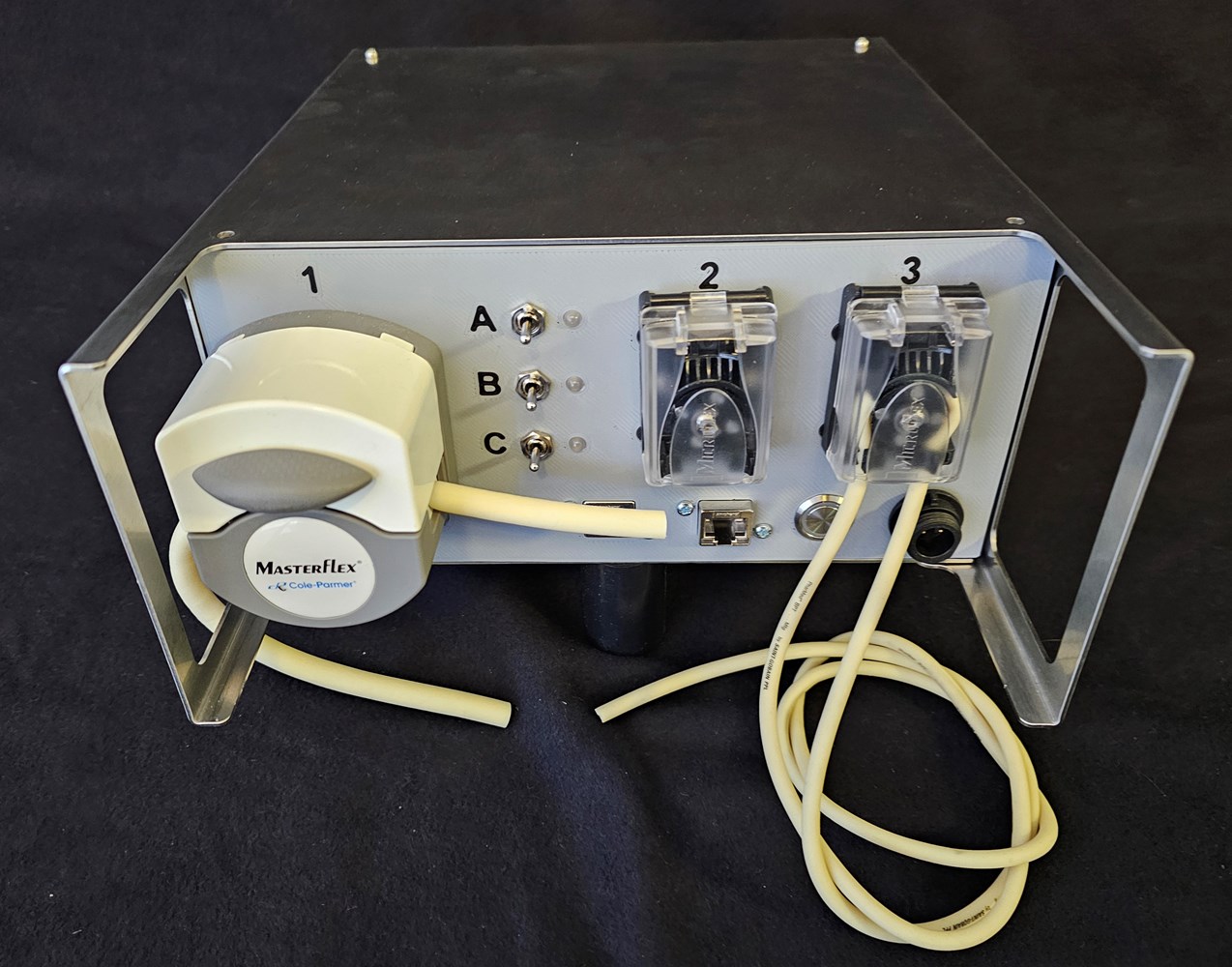

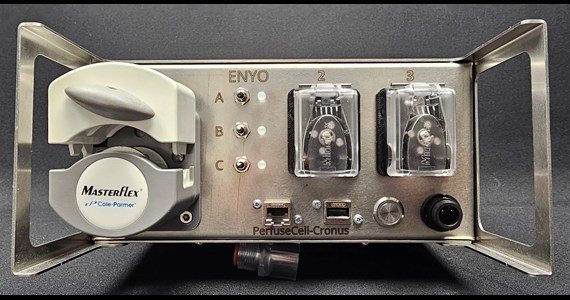

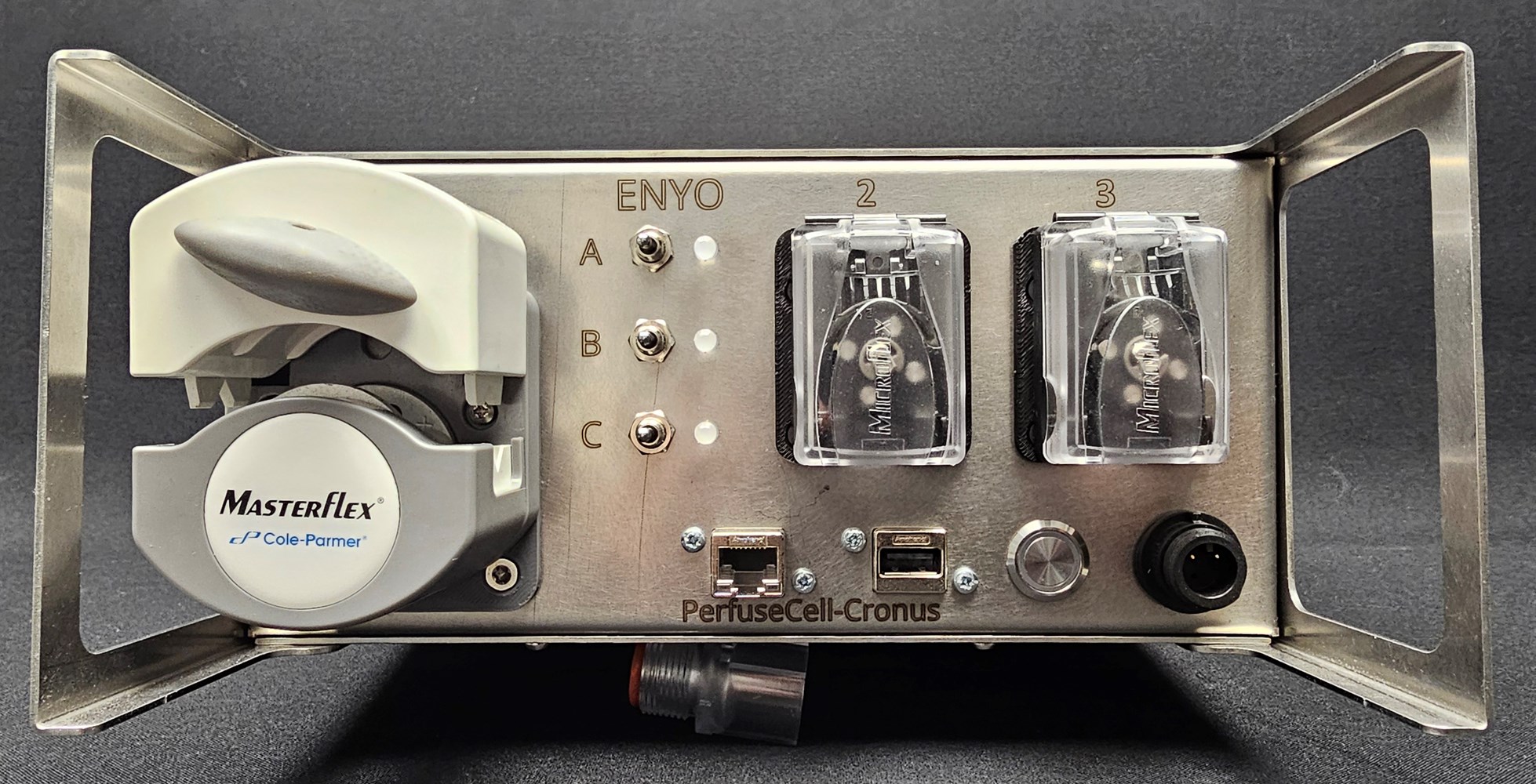

Enyo hybrid in U2 Hephaestus Stainless Steel cabinet. Toggle switches for simple manual operation.

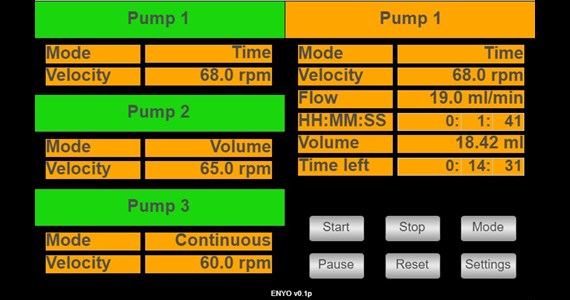

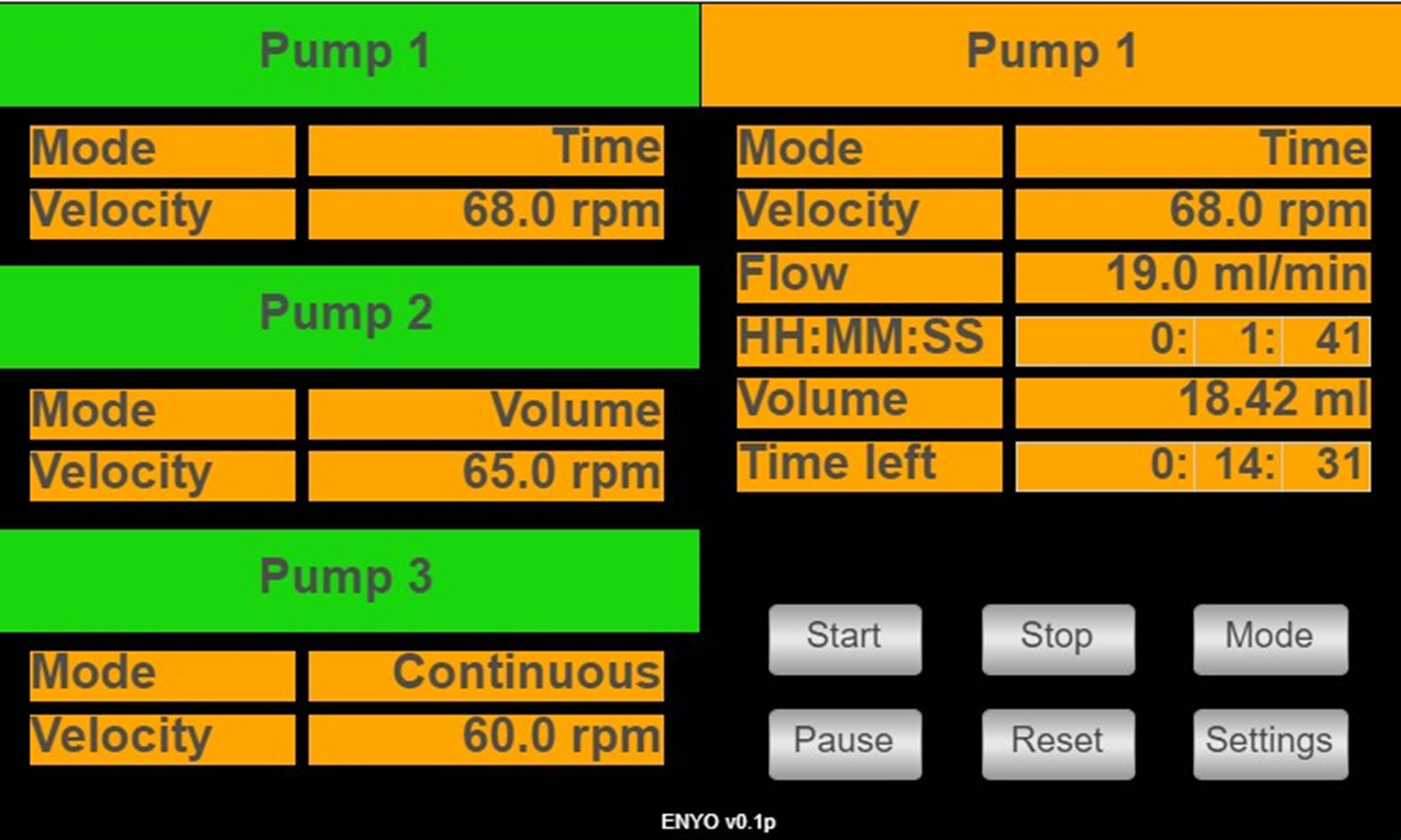

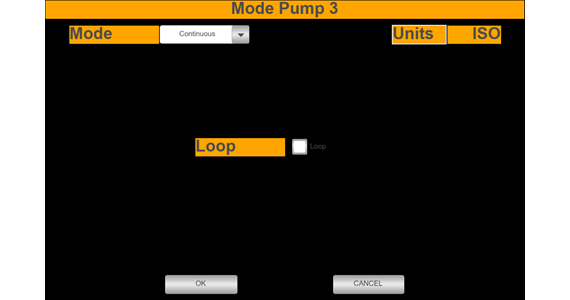

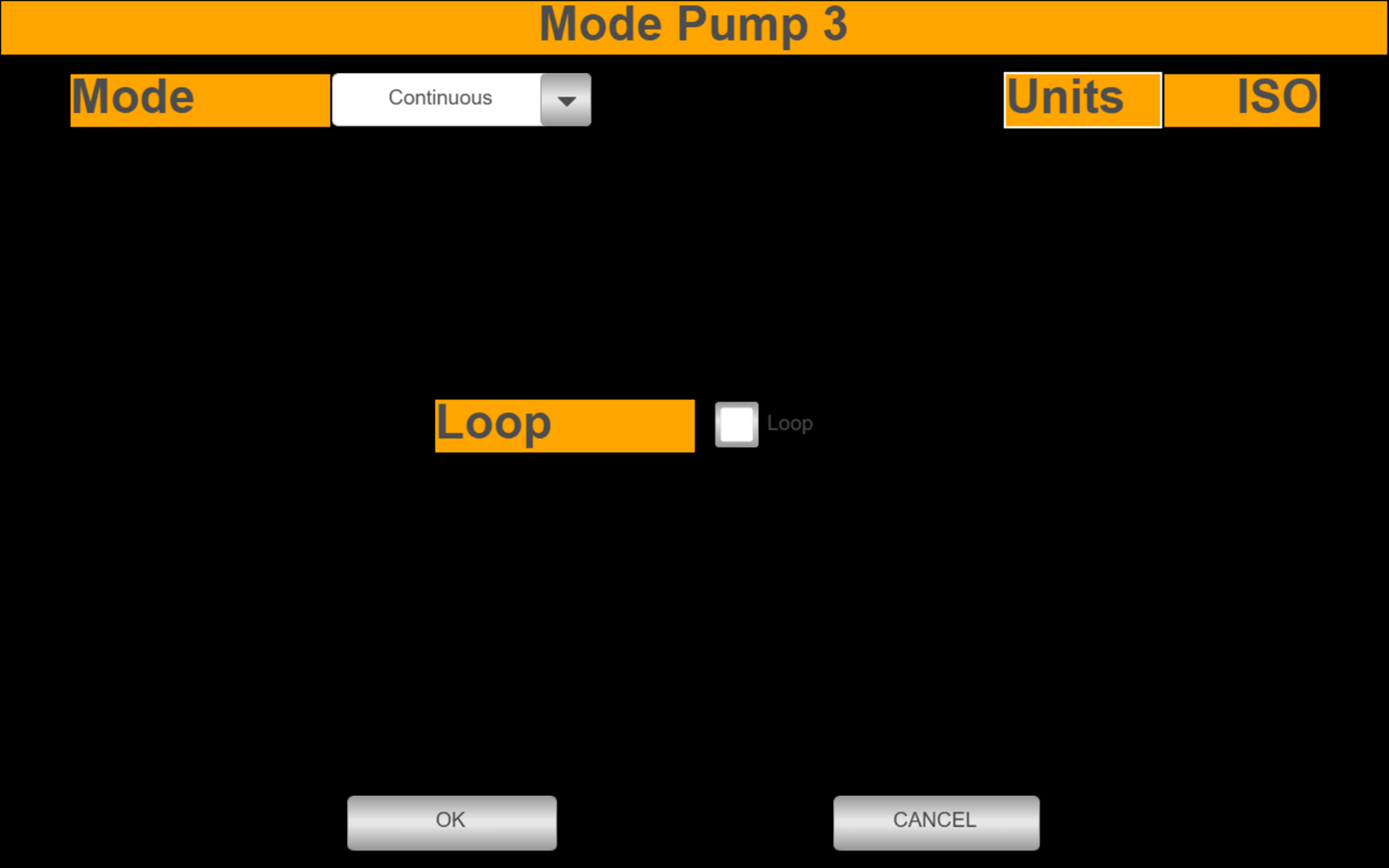

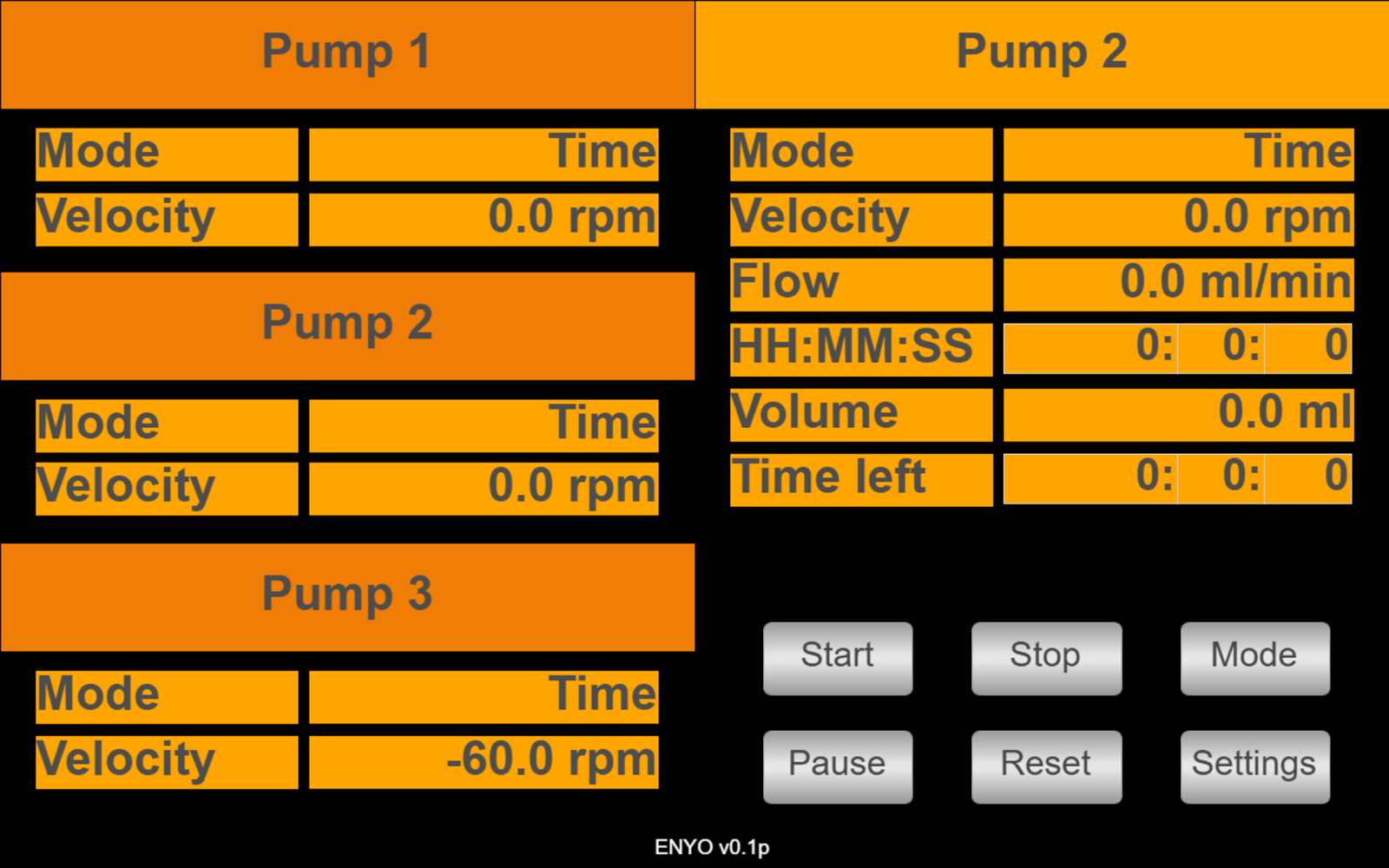

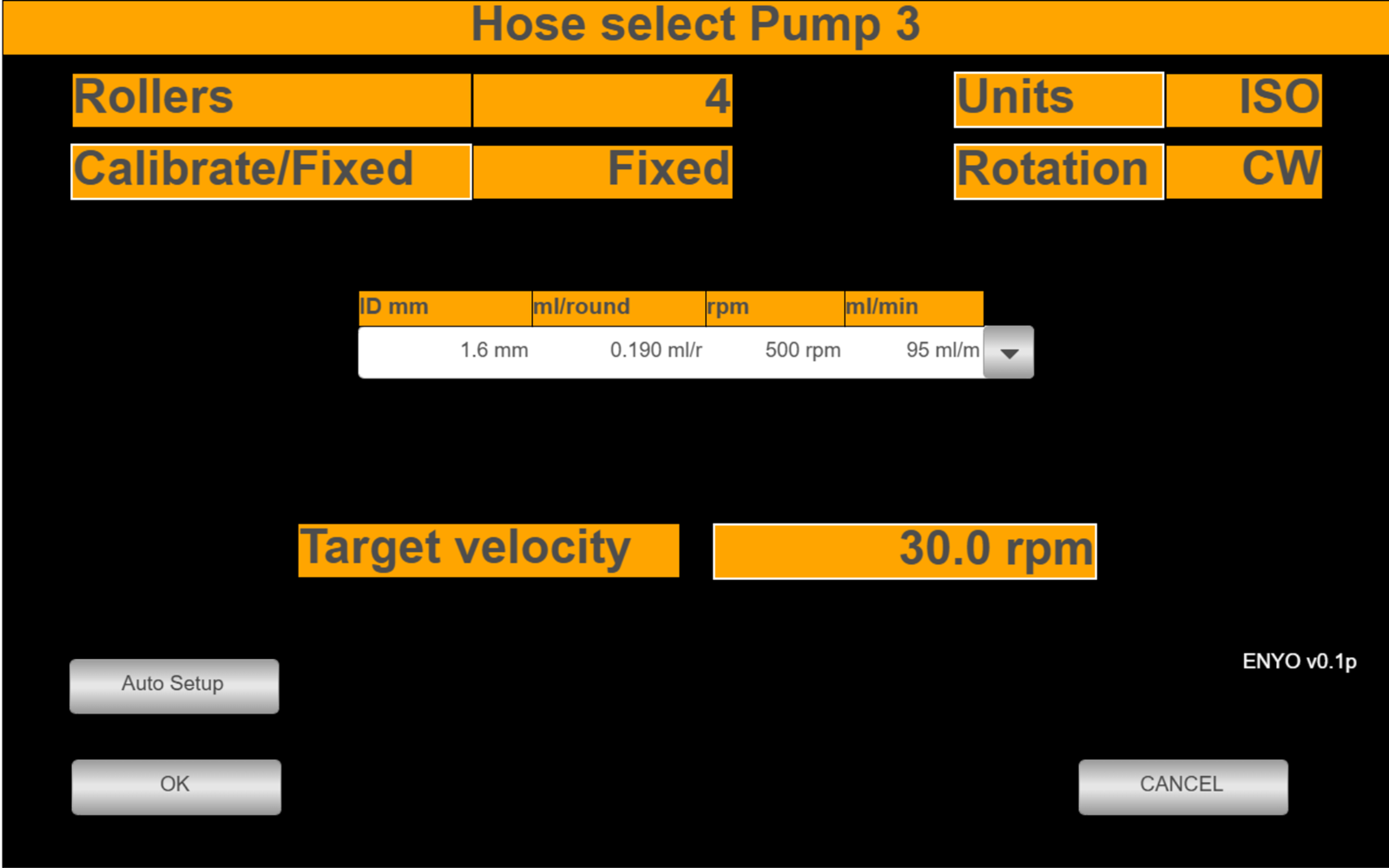

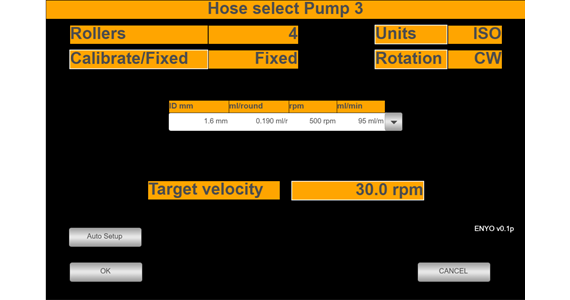

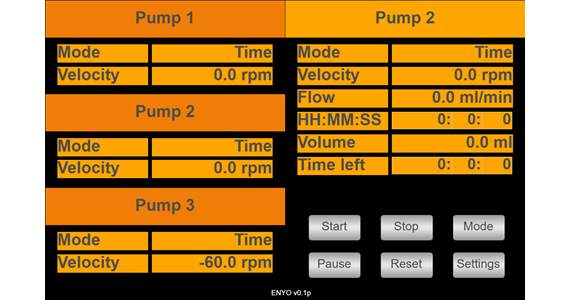

Software is easy to understand via these photos. Software which over OPC-UA connects to various platforms and directly with a smartphone.

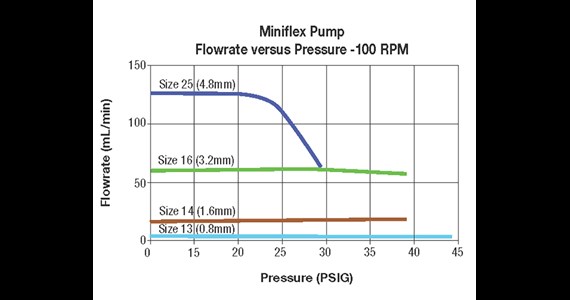

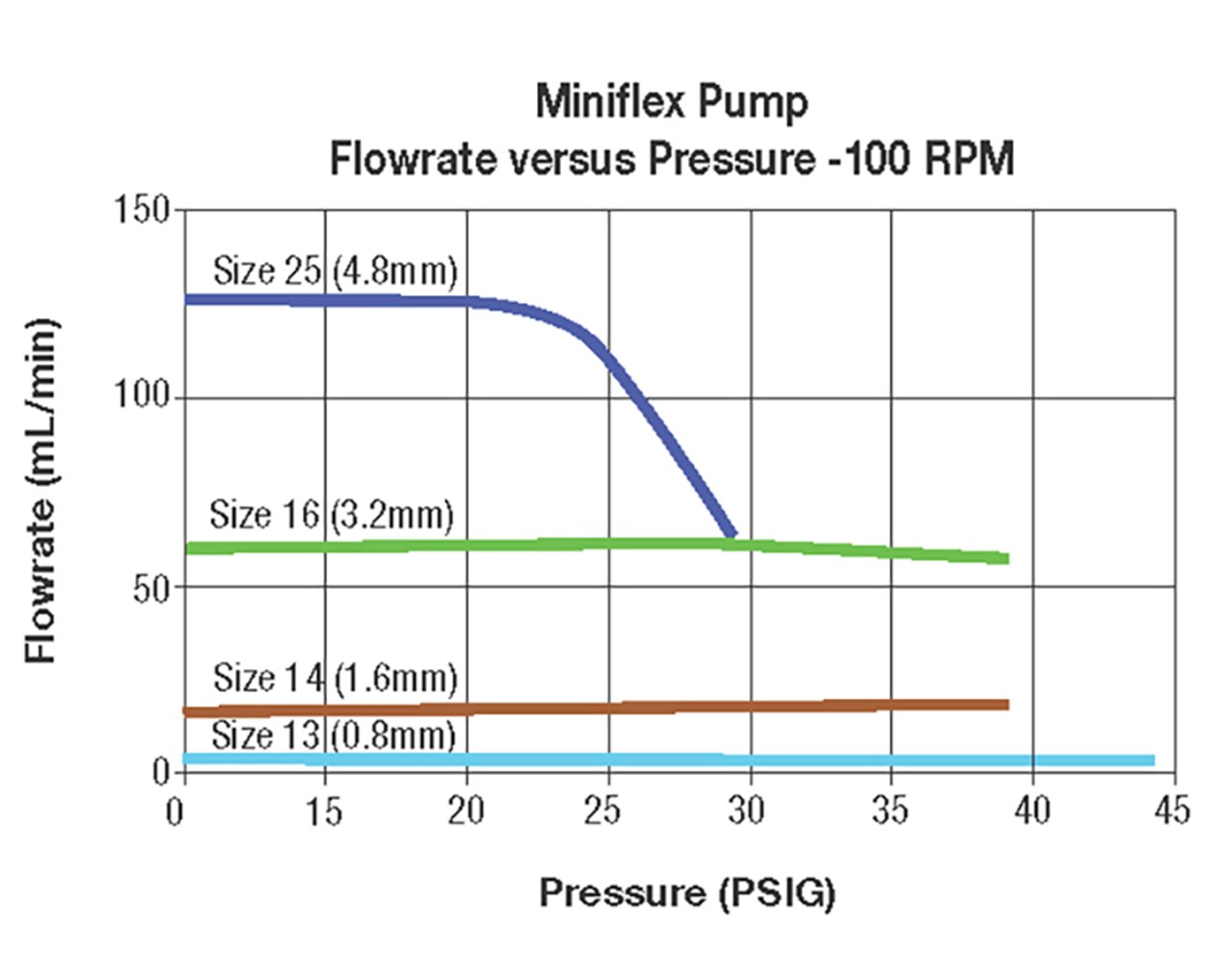

MiniFlex flowrate versus pressure at 100 rpm

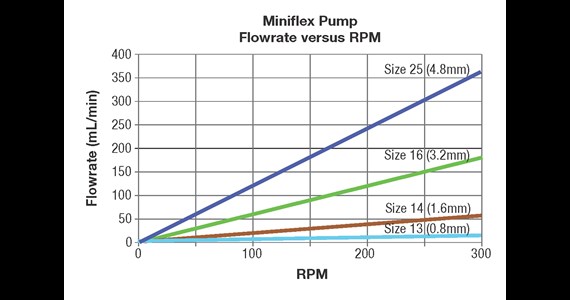

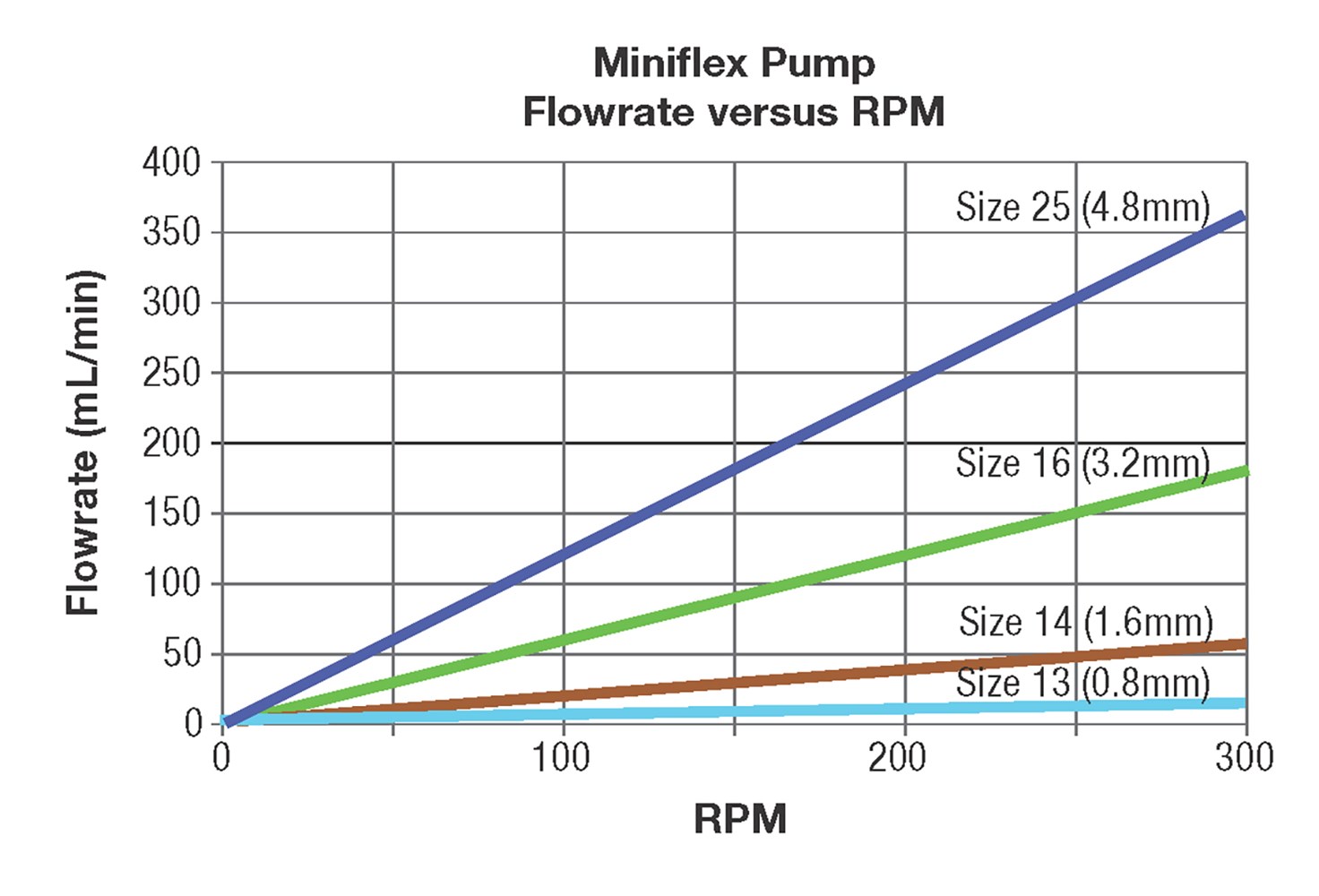

MiniFlex flowrate versus rpm

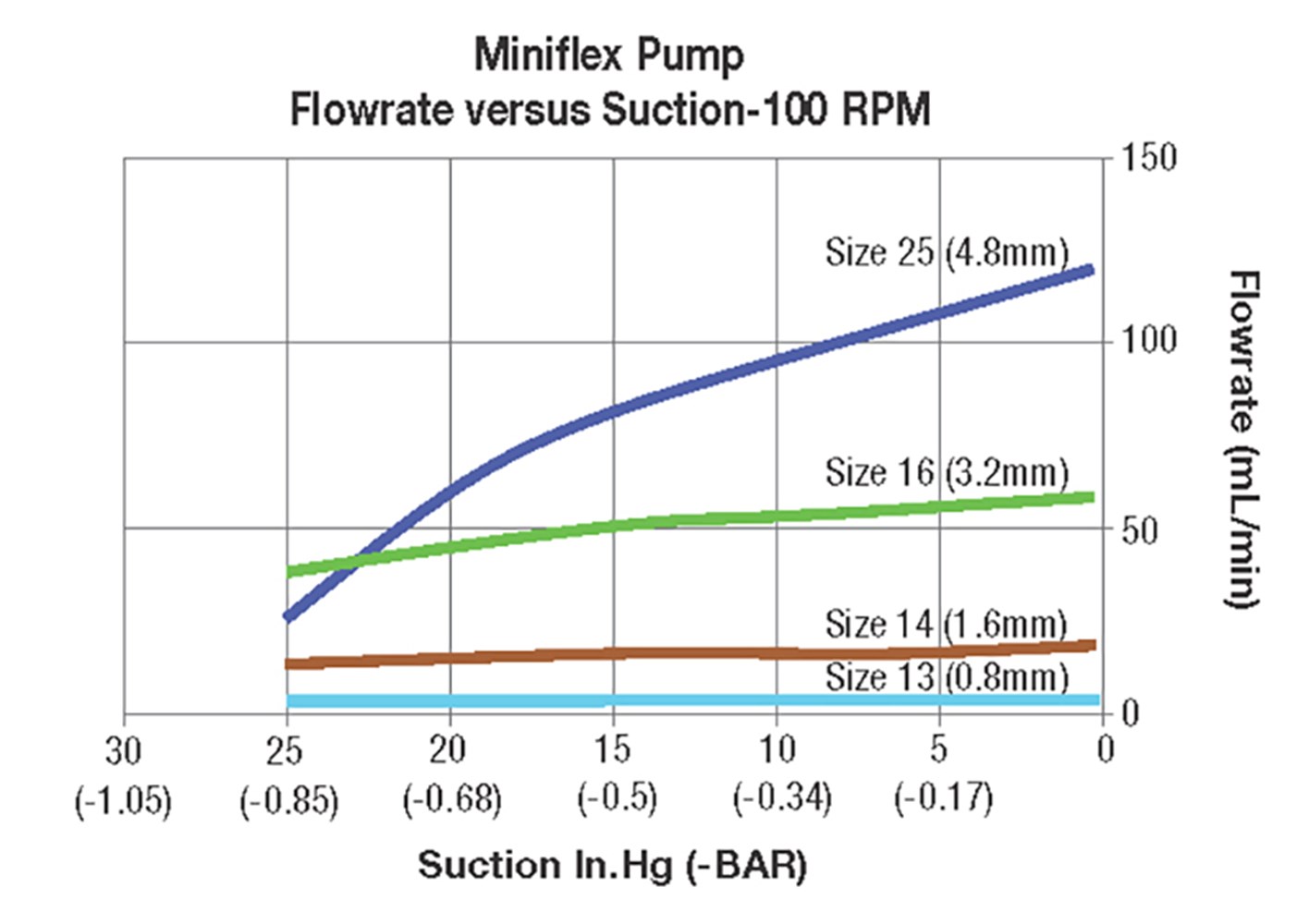

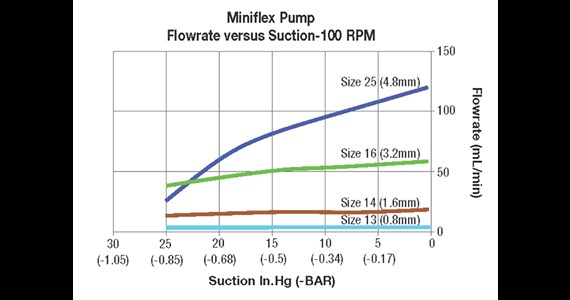

MiniFlex flowrate versus suction at 100 rpm
MiniFlex hose specification

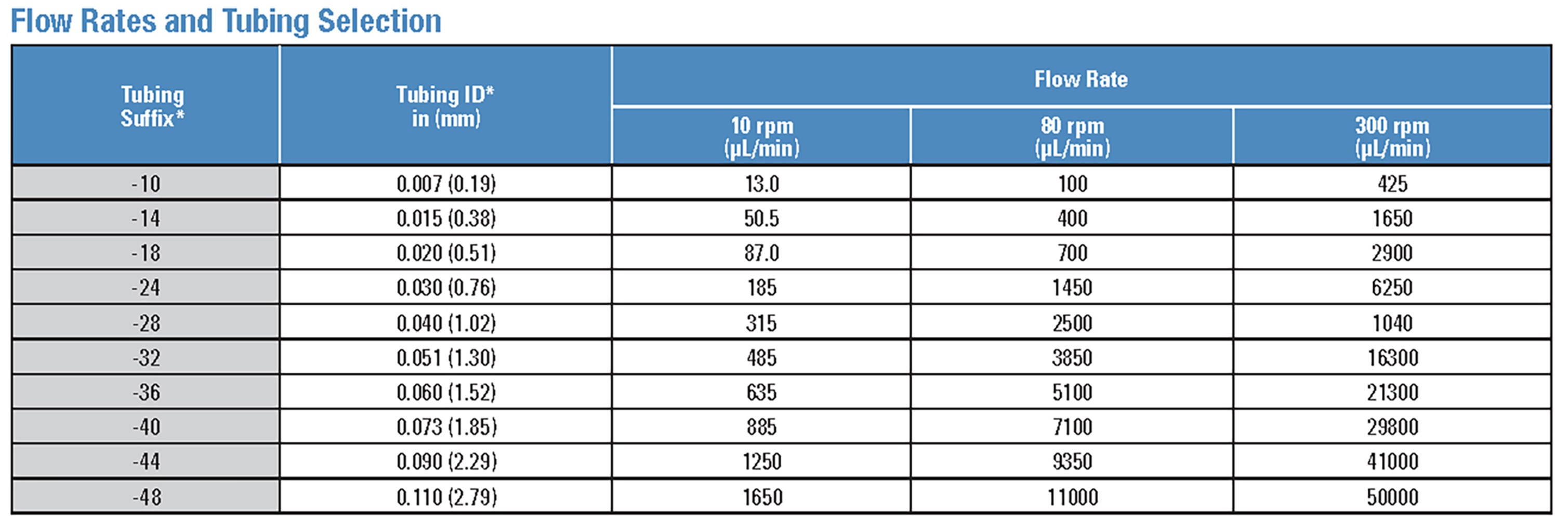

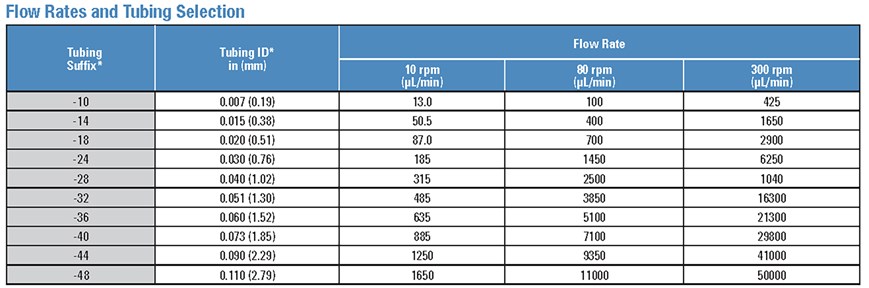

MicroFlex hose specifications. Known brands are Pharmed BPT, Silicone-Peroxide, Silicone Platinum, Tygon Food, Tygon-Lab, C-Flex, C-Flex Ultra, Tygon E-LFO, Viton, Puri-Flex, PharmaPure, CORE STA-PURE, MasterFlex.
Communication
- External connection to PC, PADs or smart-Phones via Wi-Fi for programming and info from the built-in webserver
- USB port for USB adaptor with software upgrades or Wi-Fi connection
- RJ45 port for LAN, ModBus, OPC-UA via IP/TCP and for firmware upgrades
Check out little more details about communication on this link.
Price and p/n – look under Commerce
