Advanced Mass-Flow-Controllers
Carnus MFC for mixing / supply of four different gases for aeration of one or two SUBs / SUFs /P-SUBs. Designed for interaction with other Cronus-PCS units and even able to operate in a stand-alone application.
|
Product, model name |
Carnus MFC - mono |
Carnus MFC - stereo |
|
Purpose |
Gas mixing |
Gas mixing |
|
Channels |
4 |
8 |
|
Flow ranges, slpm |
0-20 (0-11 for CO2) |
0-20 (0-11 for CO2) |
|
Cabinet size |
U2 |
U2 |
|
Weight, kilo |
5 |
5 |
Design
All channels are air calibrated and gas programable via software. Two or more channels can have the same selected gas constants and be combined for larger flow.
- Mono version integrates 4 x Mass-Flow-Controllers (MFC) with via software selectable gasses.
- Stereo version integrates 8 x MFCs modules and as such able to supply independently operating processes each with 4 different gases mixed for different mass flow.

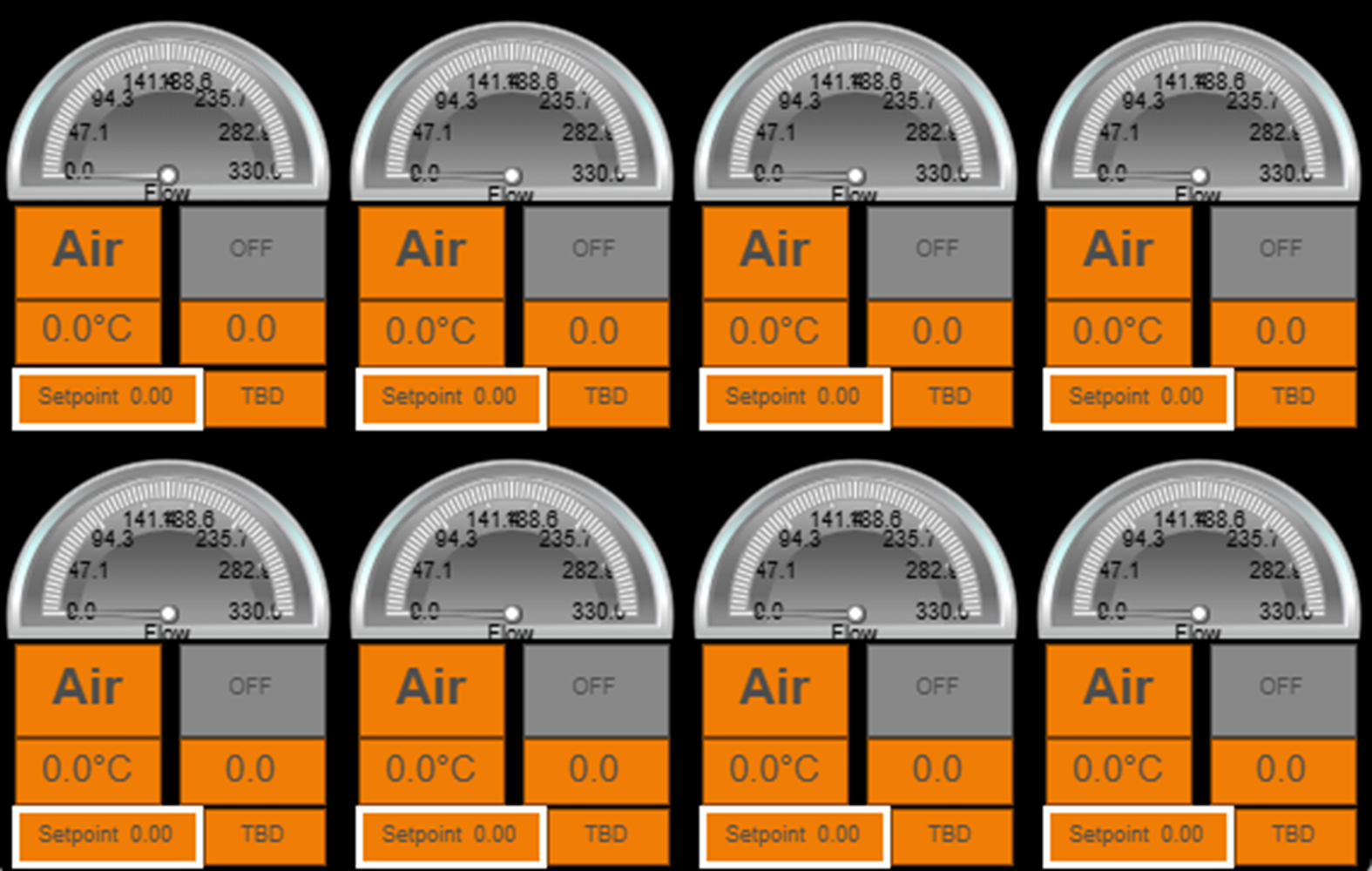

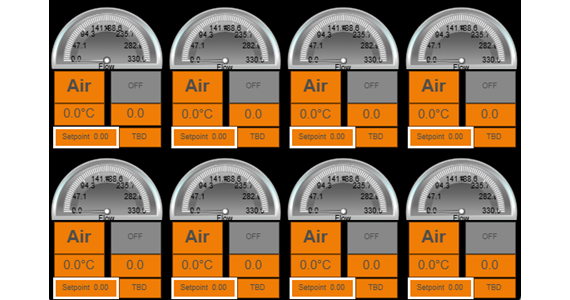

All programming and visual surveillance from 5" TFT display or via smartphone, Pad or PC via build-in webserver. Or via Lucullus (or Delta-V) as the overall software in control of the processes via OPC-UA communication.
MFC modules fixed to an aluminium manifold for good thermal stability and integrating pre-adjusted pressure regulators. Independently select flow range and specific gas for each channel is unique.
In & Out
- 24 VDC supply via Buccaneer socket and a EOS Power Supply
- Power on/off breaker
- 4 x 6 mm hose connection for gas supply (max 5 Bar)
- 1 x 6 mm hose connection for gas delivery
Communication
- 5” TFT display
- USB for Wi-Fi antenna and for software upgrades
- RJ45 TCP/IP LAN connection, OPC-UA communication

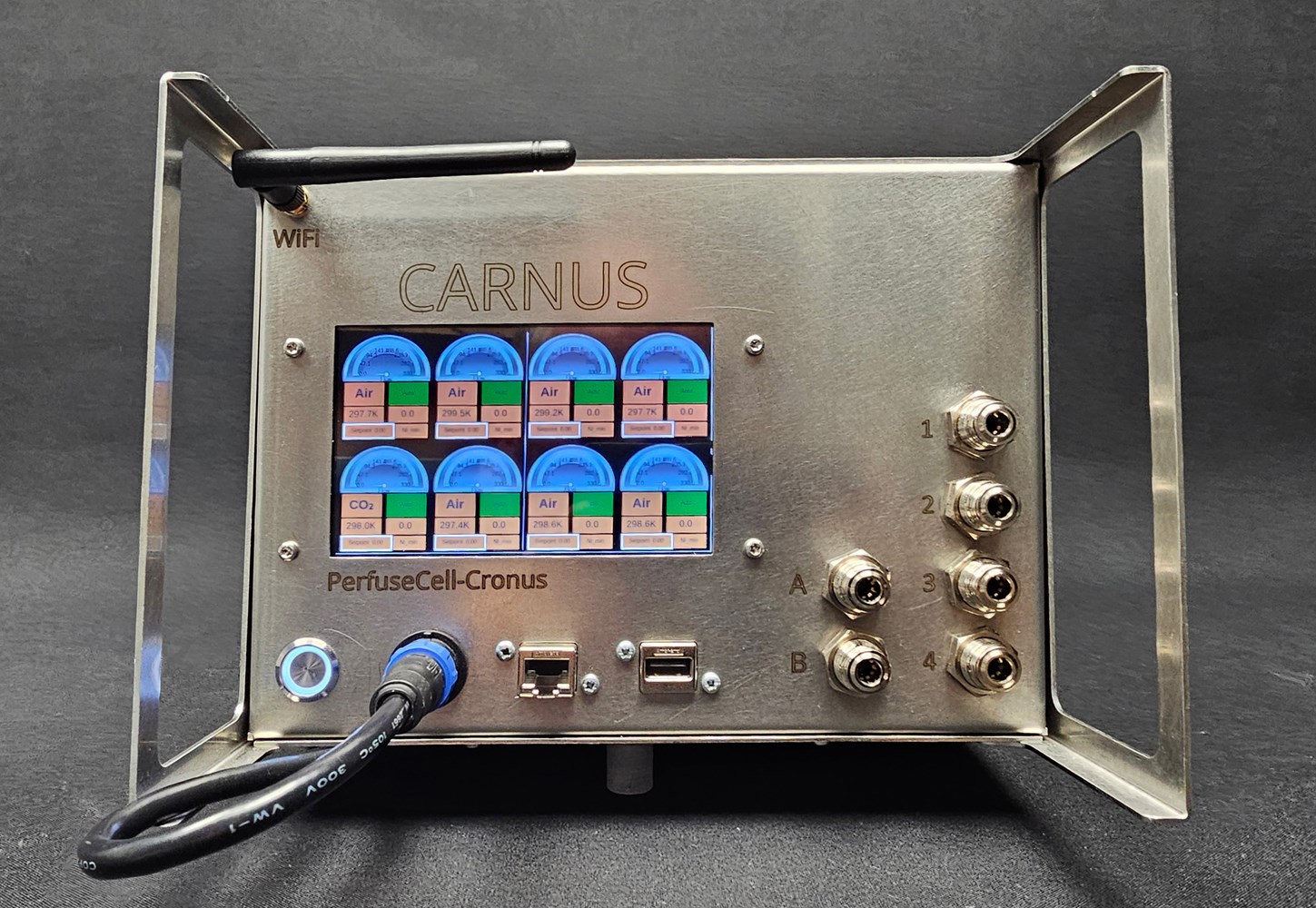

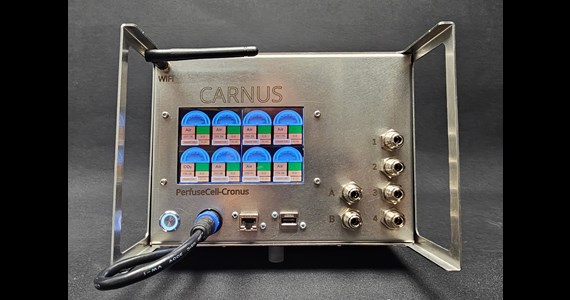

Early Carnus MFC in U2 Hephaestus Stainless Steel cabinet with four inlets and two outlets.
