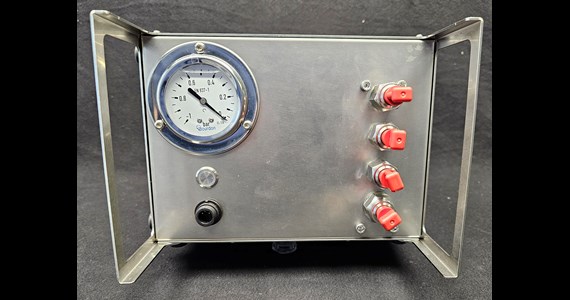

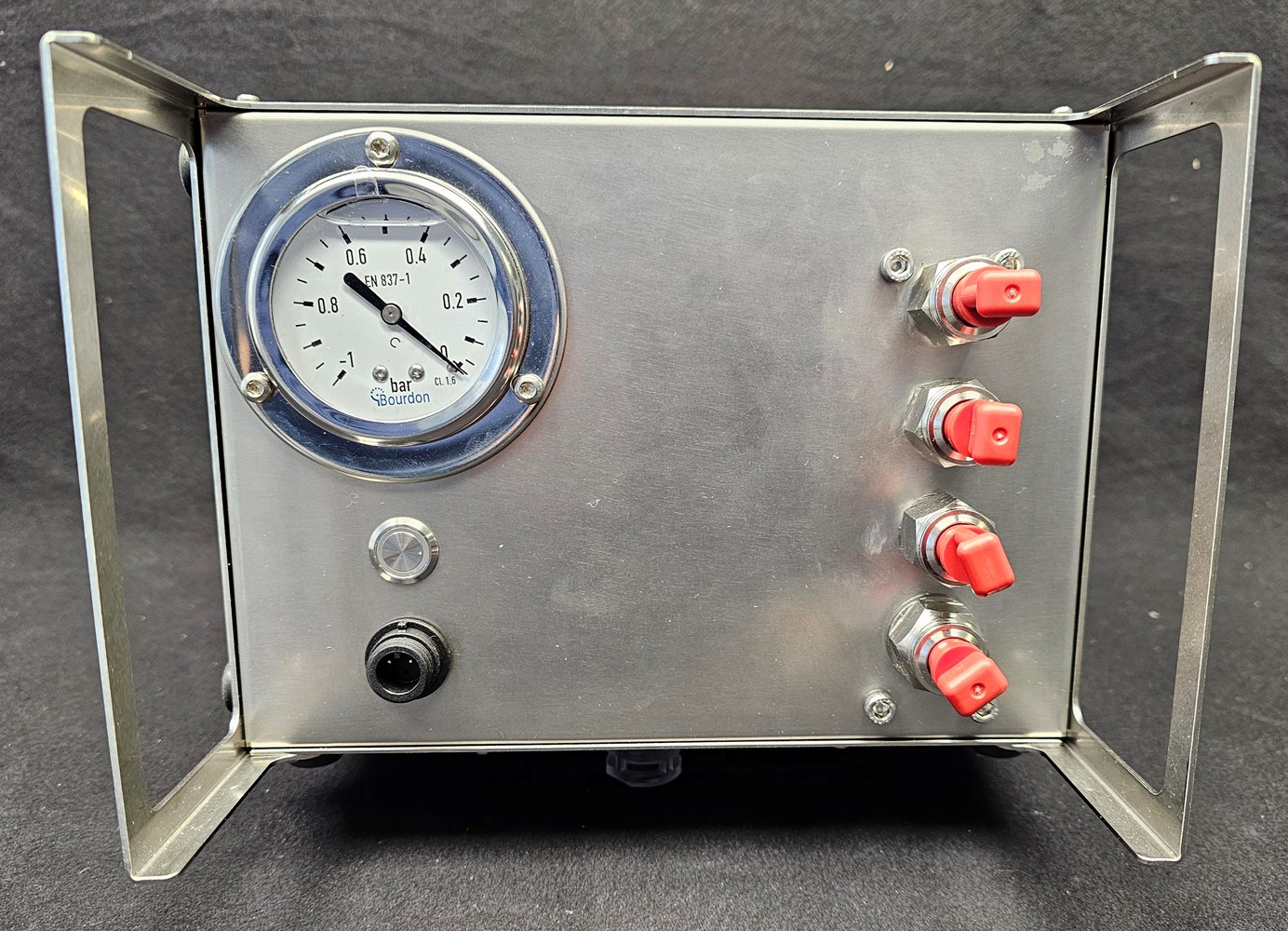

Unique low-noise vacuum supply
Stand-alone CE certified and EMC compliant pump system for supplying vacuum for Clotho, Lachesis, Atropos drive units.
|
Product, model name |
Alagonia-50 |
|
Purpose |
Vacuum |
|
Drive gas vacuum supply |
<0.01 bar absolute |
|
Rated capacity, nl/min |
50 |
|
Power supply |
24 DC - 5 amp |
|
Noise level, dBa |
<55 |
|
Hephaestus cabinet size |
U3 |
|
Weight, kilo |
6.5 |
Design
Alagonia-50 includes a scroll compressor for oil-free and continues operation. Will supply four Clotho-2 drive unit or two Lachesis or one Atropos with vacuum when connected to the 5 liter reservoir. The electrical motor is a Brush-Less-Direct-Current (BLDC) motor for >30.000 hour lifetime. Two ventilation fans integrated inside the U3 cabinet keep the compressor cool. Several Alagoni-50 able to operate in a team for larger capacity.
In & Out
- 1 x 24 VDC supply socket
- 1 x OD16 x ID12 mm one-touch coupling to the 5 liter vacuum storage tank
- 3 x OD12 x ID8 mm one-touch coupling for vacuum supply to drive units
Incl 5 liter stainless-steel vacuum storage, reservoir container.
Year 2025 the Alagonia-100 will be introduced based on a single similar scroll compressor.
Price, availability and p/n – look under Commerce
