Control of gas supply for aeration or for diaphragm pump drive



Europa family is CE certified and EMC compliant dedicated devices dealing with multi gas control of and supply of pressurised air and vacuum.



Product, model name	Carnus-MFC	Alagonia-8	Alagonia-50	Sarpedon
Purpose	Mass-Flow-Controller	Pressure or vacuum	Vacuum pump	Storage
Max capacity, nl/min	1 - 20 slpm	8	50
Voltage supply	24 VDC	either 110 or 230 VAC	24 VDC	na
Hephaestus cabinet size	U2	U2	U3	U2

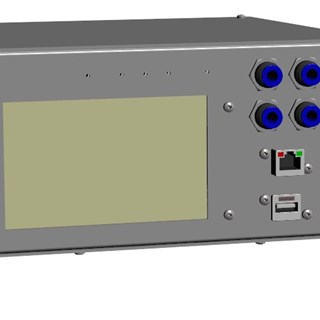

Carnus MFC status - available 2024 Q3

The Carnus MFC supply and control 4 gases independently (air, CO2, N2, O2) for aeration and gas additions.

• Flow ranges selectable from zero to 1, 5, 10, 20 slpm at 5 Bar
• Ultra-compact and good accuracy of 3% within 10-100% of range

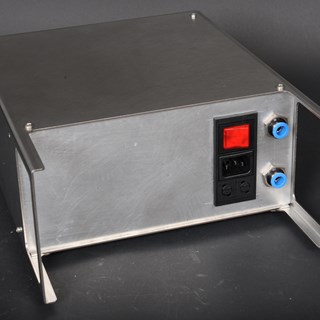

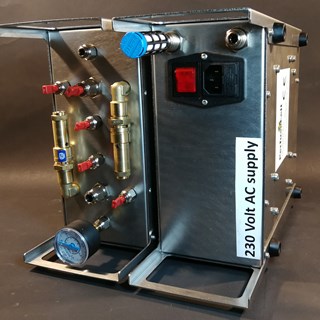

Alagonia pumps status - available since 2018

Stand-alone pump's for supply of pressurized air for aeration of SUBs or SUFs. Or Drive-Gas pressure or vacuum for drive of devices like Clotho or Lachesis unit.

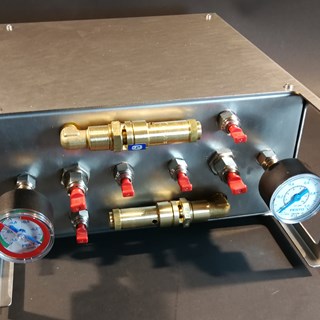

Sarpedon - available since 2018

A Hephaestus U2 cabinet integrating two separate 1 litre storage chambers. Designed to connect to one or two Alagonia when supplying Drive-Gas pressure or vacuum to Clotho or Lachesis.

Check out availability status on commerce
