How to make simple conversion of your servo motor
In order to keep it as simple as possible we prefer to use, adapt to the most widely used design in order to drive a range of CerCell bioreactors and fermenters by a range of servo motors.
Convert Teknic with ID39-B adapter

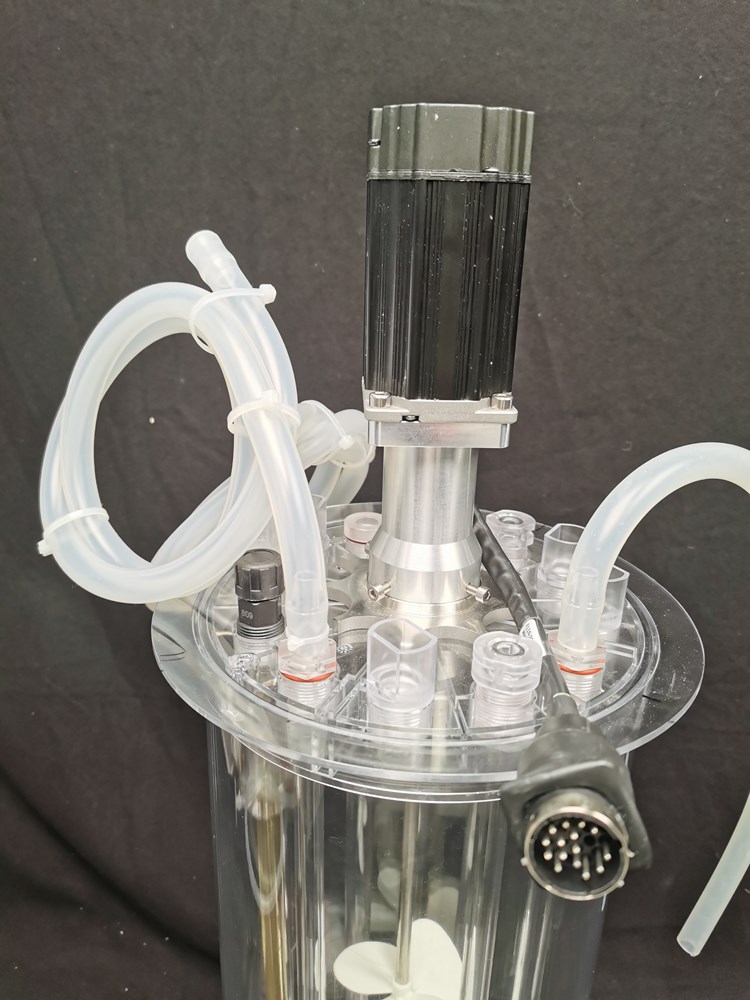

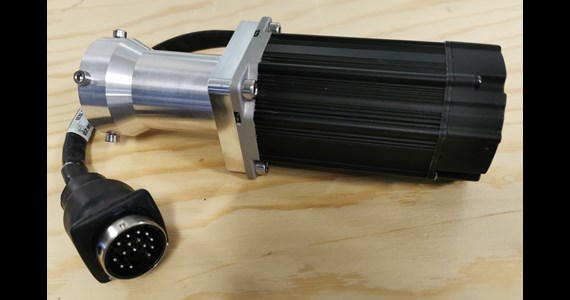

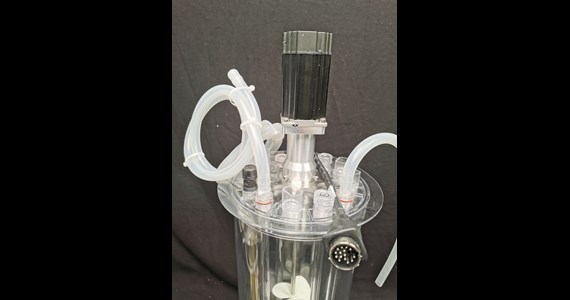

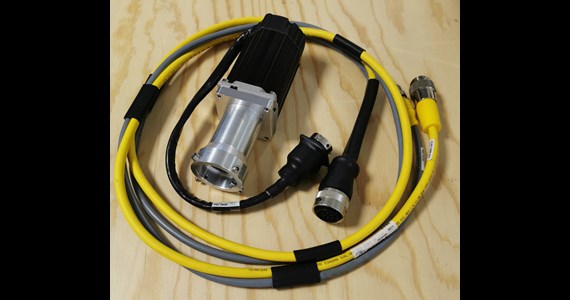

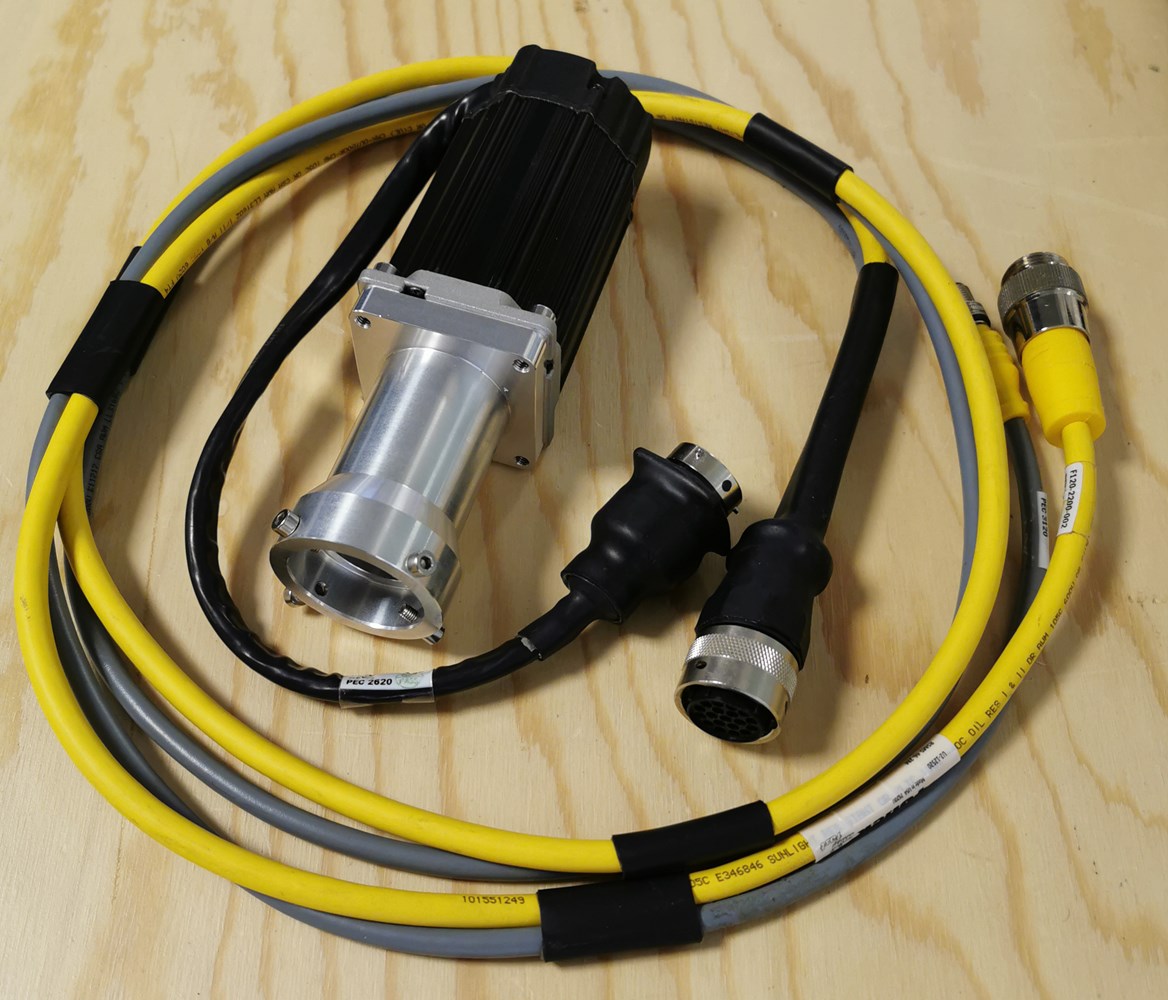

The popular Teknic M2331W BLDC servo motor used combined with Finesse G3 and later Thermo Fisher G3 PCS here shown mounted with ID39-B adapter for drive of CerCell Magnetic-Stirrer-Table (MST).

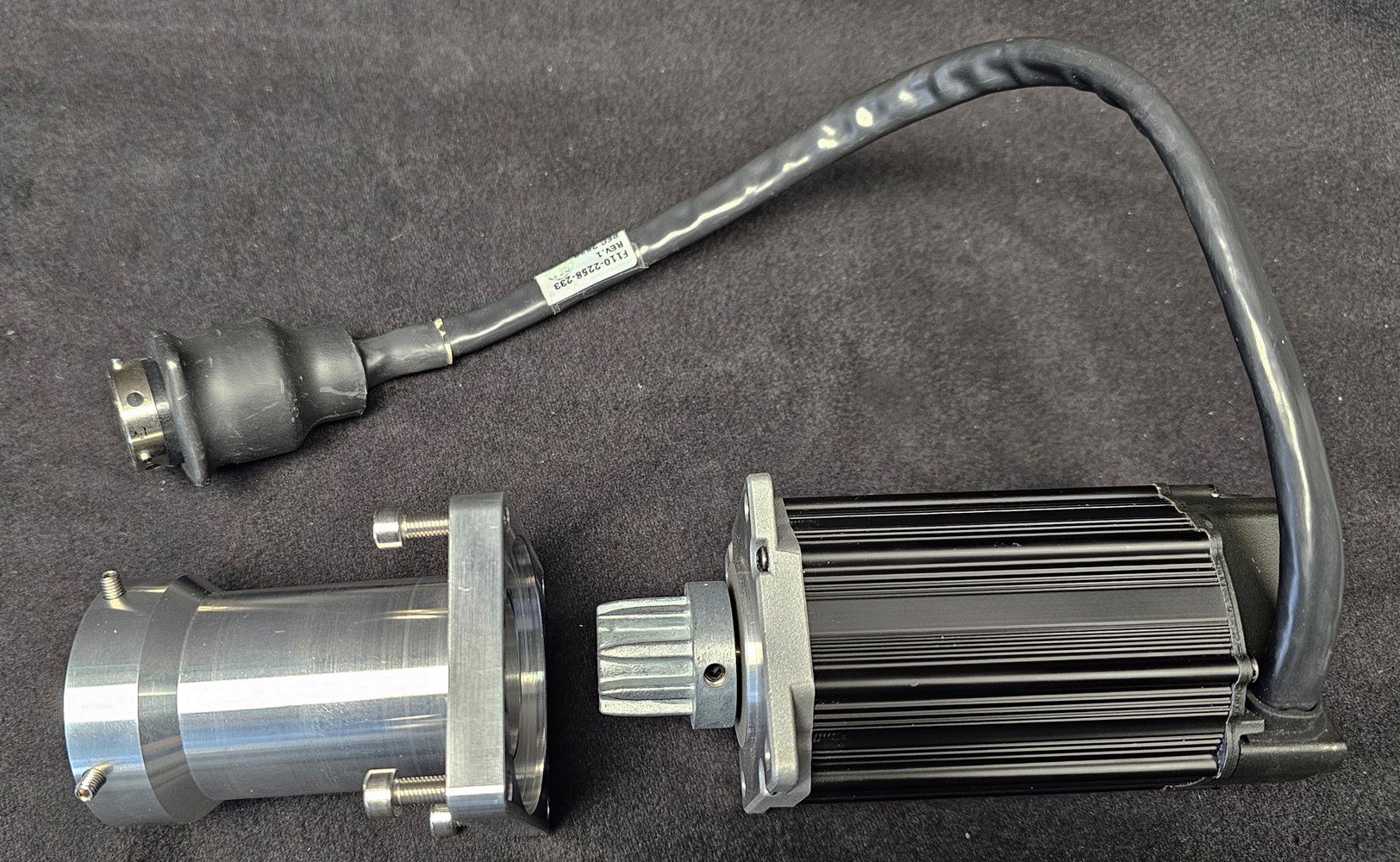

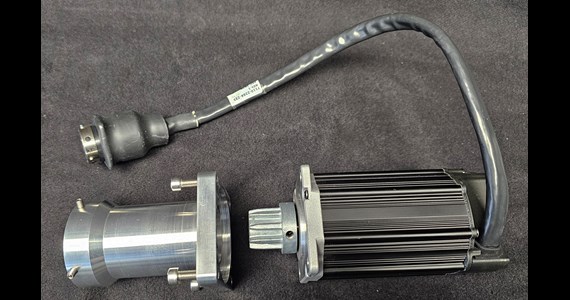

Easy equip the G3 Teknic with ID39-B style adapter increasing its use. Kit consists of: 1. ID39 aluminum adapter, 2. PowerGrip ZN21 sprocket, 3. SP21 polyurethane rubber coupling.

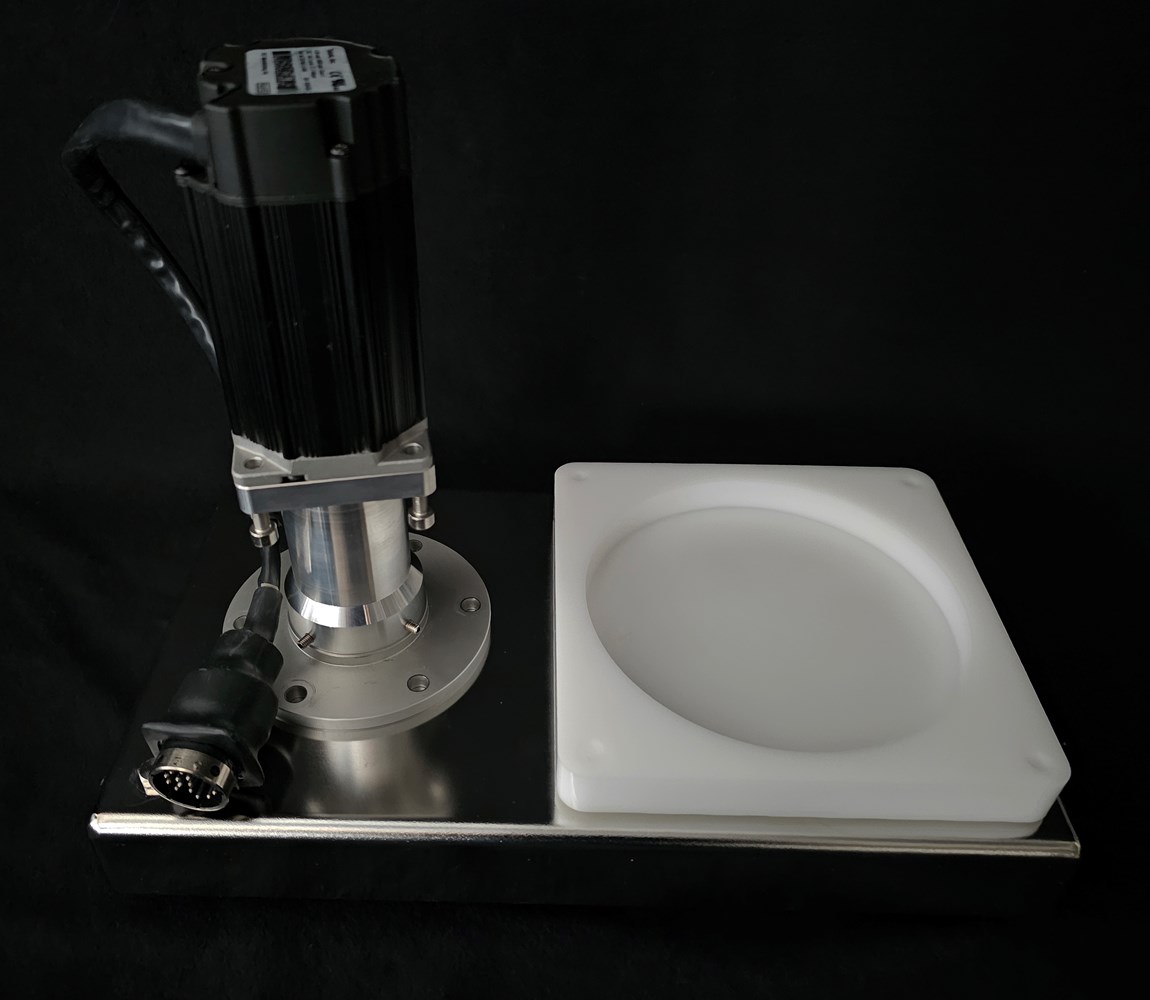

Teknic servo motor used by Thermo Fisher G3 PCS drives SUBs, MST and SUMs on MST.
Convert Eppendorf BioFLO with new ID39-B adapter

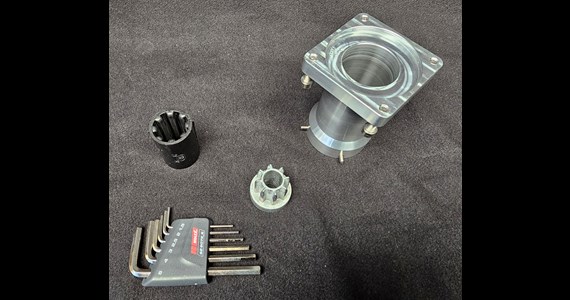

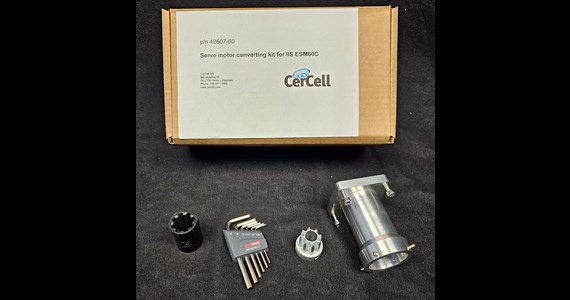

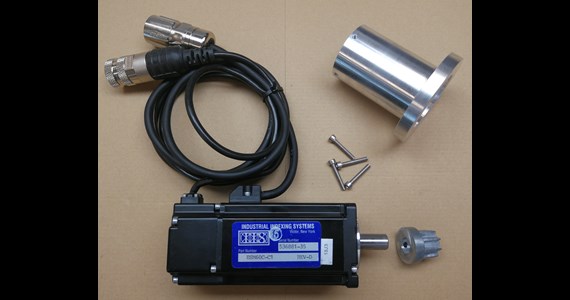

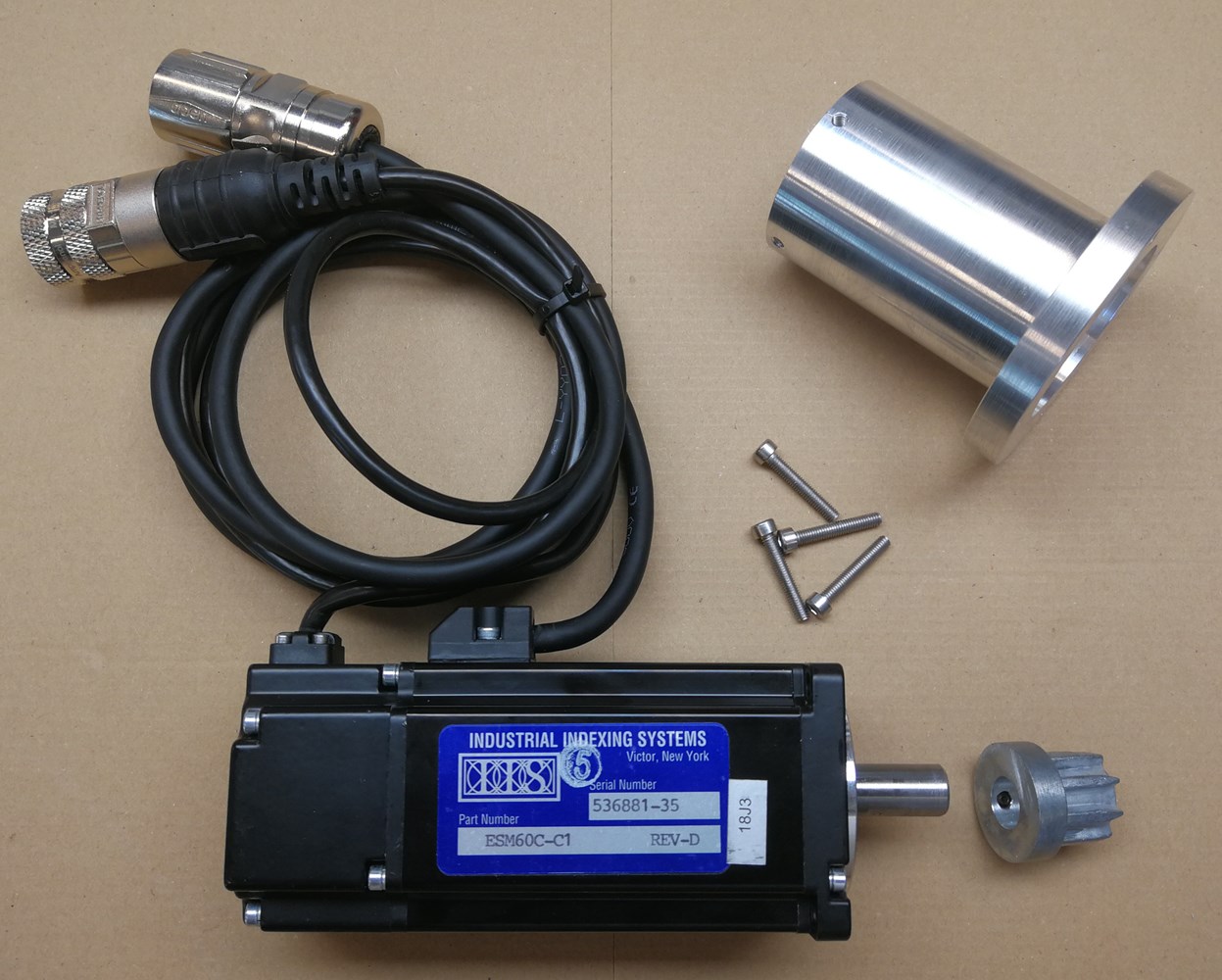

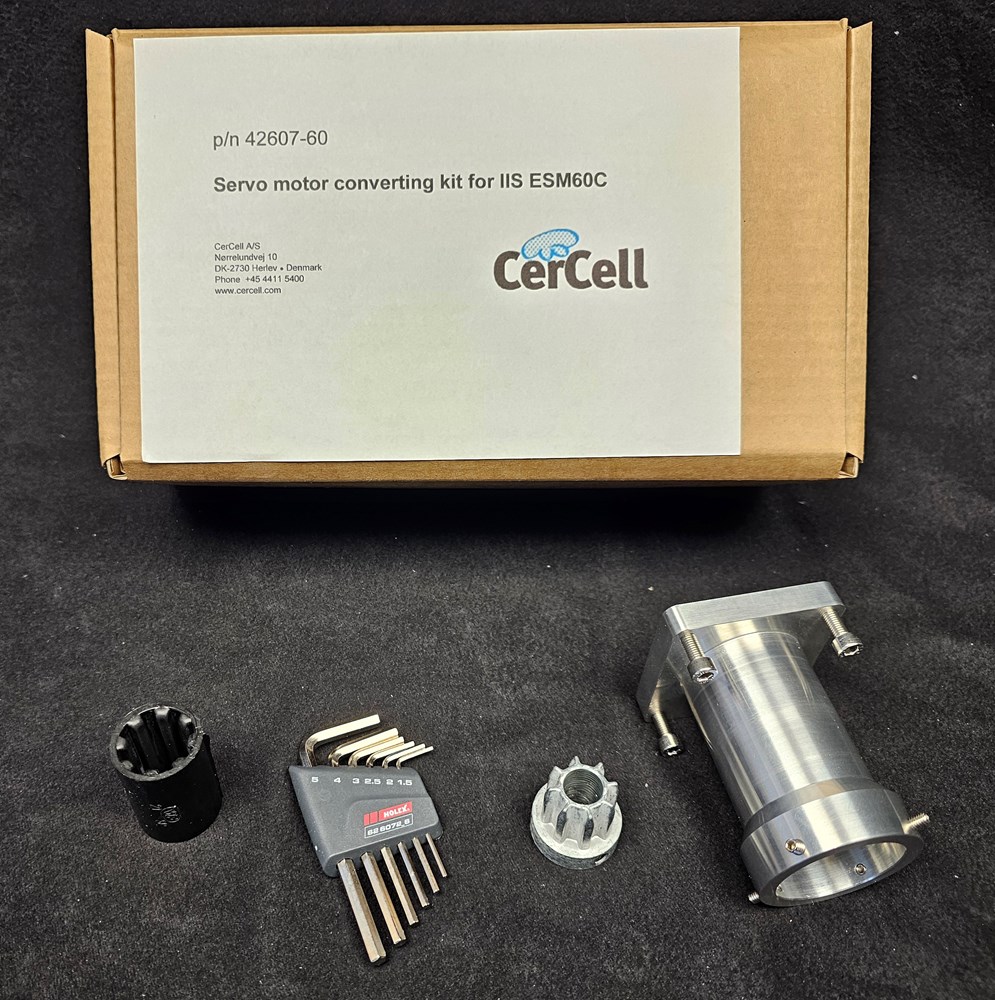

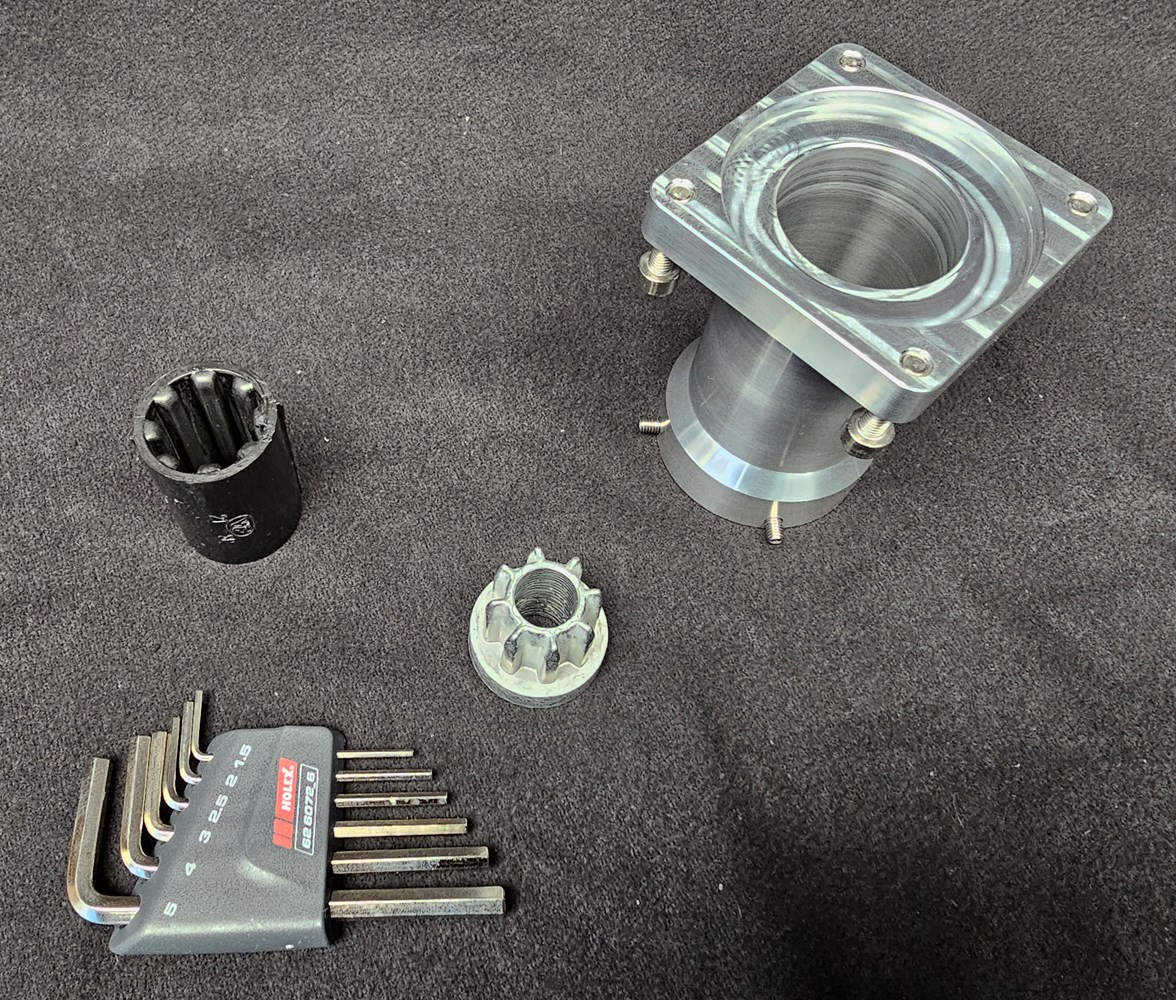

Equip the by Eppendorf BioFlo 120/320 used IIS ESM type servo motor from Industrial Indexing Systems Inc. with the ID39-B adapter. Kit consists of: 1. ID39 aluminum adapter, 2. PowerGrip ZN21 sprocket, 3. SP21 polyurethane rubber coupling
Convert old Kollmorgen with new ID39-B adapter
Upgrade the older 6SM style motor (with magnetic coupling in ID50-B adapter) to latest style PowerGrip rubber coupling in ID39-B adapter. Conversion kit allow the OD 9.0 mm axle 6SM motor to obtaining moderns style adapter dimension as the AKM or EBM-Papst style servo motors. Both original equipped with ID39-B mm adapter.
Kollmorgen 6SM+ZN21 sprocket
6SM for ID50 and 27M for ID39
AKM conversion kit from ID50 to ID39
Use metric Allen key for un-bolting the old ID50-B adapter and magnetic coupling from the 6SM motor. Mount the new PowerGrip ZN21 sprocket with a distance of 1.5 mm from motor body and the 85 mm long ID39-B adapter.
Biostat ID50 and ID39 original adaptors
6SM with ID50 and ID39 adaptors
Conversion kit for old 6SM-EU
Conversion kit designed for OD 9.0 mm axle European (Metric format) designed 6SM motors.
Convert MagMotor with new ID39-B adapter
Convert the C21-K175 motor with magnetic coupling to the ID39-B adapter used by CerCell and others.
MagMotor C21-K175 used by NBS
C21-K175 magnetic coupling from NBS
Magnetic coupling visible on C21-K175
Loosen with 1/8” Hex/Allen key the ¼” UNC screw in the magnetic coupling from the OD12 mm axle on the OD 54 mm Italian gearbox. Remove the 4 Phillips screws securing the aluminum bowl. Remember the magnetic coupling is mounted ½” up in the aluminum bowl.
Adapter kit fitting to the MagMotor C21
MagMotor C21 to ID39-B adapter kit
MagMotor with the ID39-B adapter
Conversion kit for the MagMotor model C21-K175 with gearbox and magnetic coupling - converts to ID39-B adapter design.
