Motor-Drive-System (MDS) for agitation and real-time Power Numbers
Themis family is CE certified and EMC compliant dedicated Motor-Driver-Systems for agitation or mixing purposes of a variety of devices. In particular Cilix is designed to stand-alone or be a part of a Cronus PCS package and be in control by Lucullus, DasWare, DeltaV via OPC-UA communication platform.
|
Product, model name |

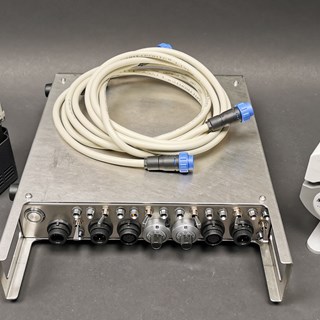

Cadmus |
Cilix-B2 |
Cilix-B8 |
|
Drive unit description |
Analogue control |

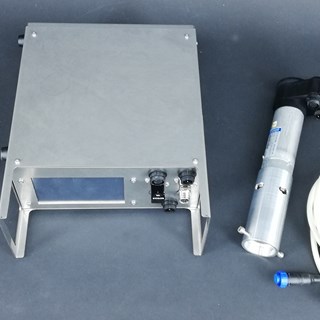

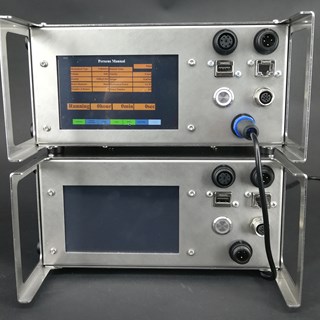

Apollon PLC and display |
Apollon PLC and display |
|

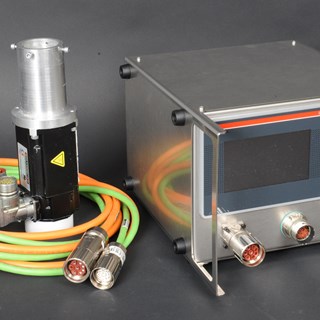

Servo motor |
2 x step NEMA-17/23 |
2 x BLDC or DC or step NEMA-13/17/23 |
8 x BLDC or step NEMA-13/17/23 |
|
Type of control |
manual |
digital |
digital |
|
TCP/IP connection |
no |
yes |
yes |
|
Driver power, watt |
2 x 50 |
2 x 50-150 | 8 x 50-150 |
|
Power Number |
no |
YES | YES |
Themis family is designed for agitation of STR (Stirred-Tank-Reactor's) or SUB (Single-Use-Bioreactor's) or SUF (Single-Use-Fermenter's) or SUM (Single-Use-Mixer's) or P-SUBs (Perfusion-SUBs). Cadmus, Cilix-B is designed for connection with the Eos family of external power supplies (Zephyros is both CE certified and UL listed).
Themis family of Motor-Driver-System accept a range of motor adapters – find here some described:

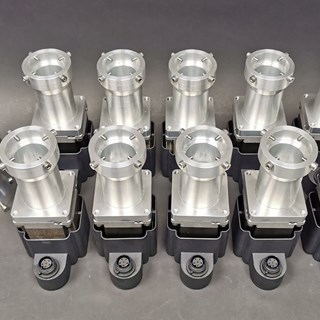

- ID39-B which fit HPD (Head-Plate-Drive) SUB / SUF / STR from various suppliers
- ID39-B which fit MST (Magnetic-Stirrer-Table) from PerfuseCell.com - ProlifeCell.com - CerCell.com
- ID30 which fit HPD (Head-Plate-Drive) on small SUBs from PerfuseCell.com - ProlifeCell.com- CerCell.com
- ID25-A which fit SUB and SUF from Applikon, Broadley-James, DASGIP RE40
- ID25-A which fit MST (Magnetic-Stirrer-Table) from PerfuseCell.com - ProlifeCell.com - CerCell.com
Cilix-B2 Motor-Driver-System accept:

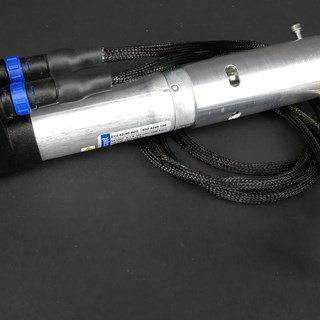

- RE30M Maxon BLDC for the 0.3 liter bioBLU with magnetic coupling
- RE30D Maxon BLDC with mechanical coupling for the DasGip 0.3 liter STR and CellVessel 500 ml
Cilix-B2 Motor-Driver-System as standard designed for 24 VDC supply and BLDC motor voltage delivering up to 6 amp deciding max power delivered close to 150 watt. Special version available with 48 VDC supply and thus max delivered power ranging 200 watt. Such extended BLDC motor equipped with a 4:1 gearbox are able to drive a 30 liter SUF with up to 1,200 RPM with triple turbines though depending on diameter.
|

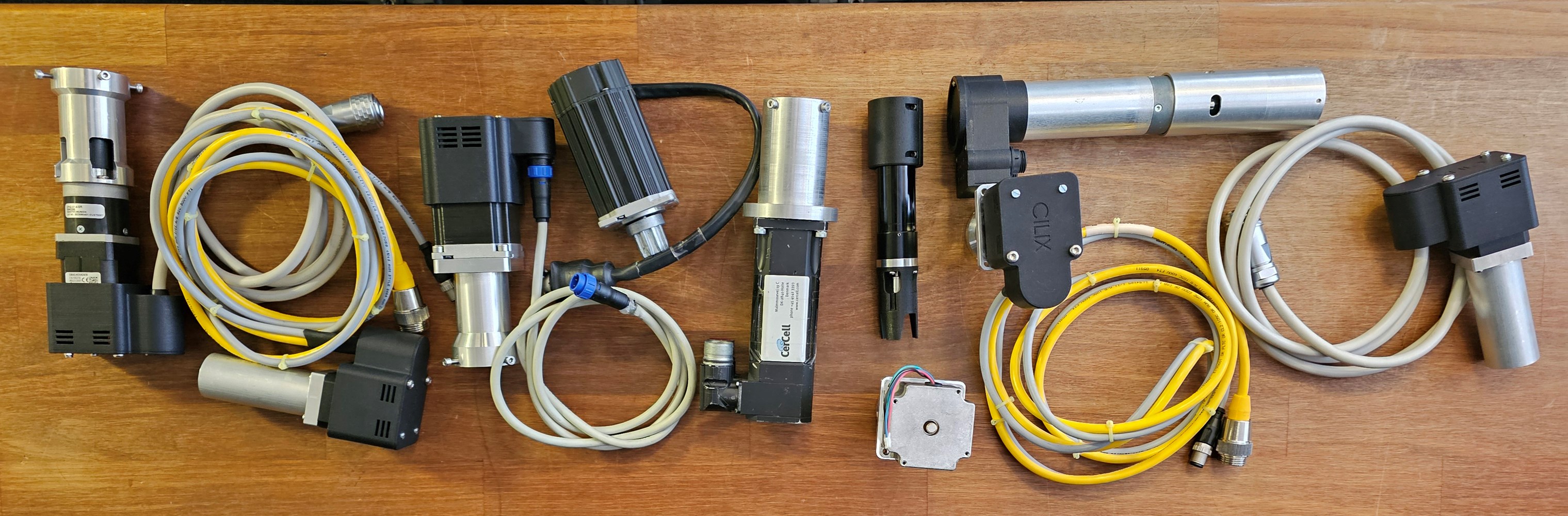

Motors |
Gear |
Watt rated max |
Torque rated Ncm |
RPM span |
Working Volume (WV) |
Drive of MST |
Adapter’s from CerCell |
|
Nanotec |
no |
50-150 |
|
50-1,200 |
|
yes |
ID39-B |
|
NanoTec |
4:1 |
50-150 |
|
50-1,200 |
1-30 liter |
yes |
ID39-B |
|
Biston step NEMA-23-L |
no |
50 |
190 |
50-1,200 |
1-13 liter |
yes |
ID39-B |
|
Biston step NEMA-23-S |
no |
40 |
126 |
50-1,200 |
1-5 liter |
yes |
ID39-B |
|
NEMA-23 BLDC |
no |
100 |
|
|
30 liter |
yes |
ID39-B |
|
NEMA-17 BLDC |
no |
50 |
50 |
30-1,200 |
1-5 liter |
yes - geared |
ID30 |
|
NEMA-13 BLDC |
no |
10 |
23 |
30-1,200 |
0.2-3 liter |
no |
ID30 |
|
Maxon RE30D |
3:1 |
20 |
30 |
0-1,200 |
0.3-0.5 liter |
no |
CellVessel SUB. SUM, DasGip STR |
|
Maxon RE30M |
3:1 |
20 |
30 |
0-1,200 |
0.3 liter |
no |
bioBLU SUB |
Check out price and availability status on www.cronus-pcs.com/commerce
